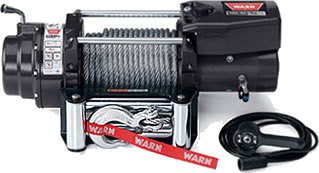

16.5ti Thermometric Winch, 12V, 90'
|
List Price: $2,613.32
Your Price: $1,837.49
Item Number: 68801
Manufacturer: Warn
Manufacturer Part No: 68801
|
|
16.5ti THERMOMETRIC SELF-RECOVERY WINCH
|
The new WARN 16.5ti is the highest capacity, most technologically advanced truck winch in the industry today.
The 16.5ti features the full diagnostic ability of WARN Thermometric technology, plus the extreme sealing, durability and reliability that the WARN ti-series of winches are known for.
The new, more efficient design delivers faster line speeds and lower amp draw. It's beefed up where needed, and features a new aluminum solenoid housing cover. Not to mention 90 feet of aircraft grade, 7/16" wire rope.
|
| 16.5ti SPECS/PART NUMBERS
|
| Part Number: PN 68801 (12V DC)
|
| Rated Line Pull: 16500 lbs. (7484 kgs.) single-line
|
| Motor: 12V 4.6 hp, Gen II, Series Wound
|
| Remote Control: Remote switch, ti, 12' (3.7m) lead
|
| Geartrain: 3-Stage Planetary
|
| Gear Ratio: 315:1
|
| Lubrication: Molybue: #1 or Aeroshell #17
|
| Clutch (freespooling): Rotating Ring Gear
|
| Brake: Automatic Direct Drive Cone
|
| Wire Rope:: 90', 7/16" diameter (27m, 11mm diam.)
|
| Fairlead: Roller
|
| Recommended Battery: 650 CCA minimum for winching
|
| Battery Leads: 2 gauge, 72" (1.83m)
|
| Finish: Chromate with high-gloss dark gray powder coat
|
| Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)
|
| Weight: 138 lbs. (63 kgs.)
|
|
| 12V DC PERFORMANCE SPECS
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
23.6(7.20)
|
68 amps
|
1/16500(7484)
|
| 2000(907)
|
12.07(3.68)
|
138 amps
|
2/15279(6930)
|
| 4000(1814)
|
9.22(2.81)
|
189 amps
|
3/12672(5748)
|
| 6000(2721)
|
7.37(2.25)
|
240 amps
|
4/10824(4910)
|
| 8000(3628)
|
6.08(1.85)
|
291 amps
|
|
| 10000(4536)
|
5.12(1.56)
|
342 amps
|
|
| 12000(5443)
|
4.40(1.34)
|
393 amps
|
|
| 14000(6350)
|
3.86(1.18)
|
444 amps
|
|
| 16000(7257)
|
3.38(1.03)
|
494 amps
|
|
| 16500(7484)
|
3.24(0.99)
|
507 amps
|
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
Winch Dimensions: 24.7" L. x 8.5" D. x 9.7" H.
(628mm L. x 216mm D. x 247mm H.)
|
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
|
|
