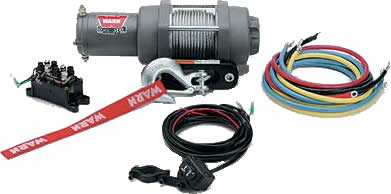

2.5ci ATV Winch w/Roller Fairlead
|
|
Item Number: 64500
Manufacturer: Warn
Manufacturer Part No: 64500
|
WARN 2.5ci WINCH - more power, more value.
New controls and a new price point make the new 2.5ci a powerful entry level winch. The 2.5ci is 2500 pounds of pure pulling power. Its packed with 6-guage wiring the Express Wiring System, contactor, mini-rocker switch and includes roller fairlead.
2.5ci SPECS/PART NUMBERS:
Part number: PN 64500 (CE version: PN64501)
Rated line pull: 2500 lbs. (1134 kgs.) single-line
Motor: 12V DC, .9hp (.7kW) permanent magnet
Control: Handlebar mounted Mini-rocker switch
Gear train: 3-Stage Planetary
Gear ratio: 136:1
Lubrication: Aeroshell #17
Clutch (freespooling): Cam activated
Brake: Dynamic. Mechanical brake is available as an option - PN 22142. (CE version includes mechanical brake).
Drum diameter/Length: 2.0"/2.9"
Weight: 15.4 lbs. (7.0kgs.)
Wire rope: 50', 3/16" diameter (15m, 5mm diam.)
Fairlead: Hawse
Recommended Battery: 12 Amp/hour minimum for winching
Battery leads: 6 gauge
Finish: Grey
Warranty: 1-year limited
12V DC PERFORMANCE SPECS:
|
Line Pull
Lbs.(Kgs.)
0
500(227)
1000(455)
1500(680)
2000(907)
2500(1134)
|
Line Speed
Ft./min.(M/min.)
24(7.3)
19(5.8)
15(4.6)
11(3.3)
9(2.7)
7(2.1)
|
Motor
Current
18 amps
51 amps
88 amps
125 amps
165 amps
204 amps
|
|
Above performance specs are based on first layer of drum
Winch Dimensions: 12.62" L. x 4.5" D. x 4.75" H.
(32cm L. x 12cm D. x 12cm H.)
Mounting Bolt Pattern: 3" x 4.87" (7.6cm x 12.4cm)
|
|
