9.5ti Multi Mount
|
List Price: $2,047.99
Your Price: $1,439.99
Item Number: 65735
Manufacturer: Warn
Manufacturer Part No: 65735
|
|
|
|
9.5ti THERMOMETRIC MULTI-MOUNT PORTABLE
TOP-NOTCH STRUCTURE
TOP-NOTCH OPERATOR FEEDBACK
TOP-NOTCH WINCH
|
|
|

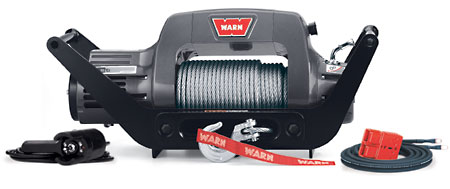

The 9.5ti Multi-Mount packs 9500lbs of portable pulling capacity into a massive 12.5lb aluminum die-cast body. The new shape not only looks great, but sheds the elements like no other winch on the market: seals at the key points give extreme-duty water resistance. A Gen II Bosch motor delivers just the right balance between torque and speed. Plus another Warn Industries first - operator feedback - the thermometric indicator gives the operator information about motor temperature during the winching operation.
The 9.5ti Multi-Mount includes winch and carrier, wiring for the front of vehicle. Includes remote with integrated flashlight. Front receiver and rear power lead sold separately.
|
|
| 9.5ti MULTI-MOUNT SPECS/PART NUMBERS
|
| Rated Line Pull: 9500 lbs. (4310 kgs) single-line
|
| Motor: Gen II, Series WoundTM
|
| Remote Control for 65735: Remote, 12' (3.7m) lead, thermometric indicator, S2 elements, integrated flashlight
|
| Remote Control for 67912: Remote switch, 12' (3.7m) lead, thermometric indicator, S2 elements, integrated flashlight
|
| Geartrain: 3-Stage Planetary
|
| Gear Ratio: 156:1
|
| Lubrication: Aeroshell #17
|
| Clutch (freespooling): Sliding Ring Gear
|
| Brake: Automatic Direct Drive Cone
|
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
|
| Weight: 112 lbs. (51 kgs.)
|
| Wire Rope: 125', 5/16" diameter (38m, 8mm diam.)
|
| Fairlead: Hawse
|
| Recommended Battery: 650 CCA minimum for winching
|
| Battery Leads: Front heavy-duty 7.5'/2.2m with quick connect plug
|
| Finish: Chromate with High-gloss Powder Coat
|
|
| 12V DC PERFORMANCE SPECS
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
62(18.9)
|
47 amps
|
1/9500(4313)
|
| 2000(910)
|
16.3(4.97)
|
160 amps
|
2/8650(3927)
|
| 4000(1810)
|
11.8(3.60)
|
230 amps
|
3/7920(3595)
|
| 6000(2720)
|
9.31(2.84)
|
305 amps
|
4/7400(3359)
|
| 8000(3630)
|
7.59(2.31)
|
370 amps
|
5/6940(3150)
|
| 9500(4310)
|
6.67(2.03)
|
425 amps
|
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
|
