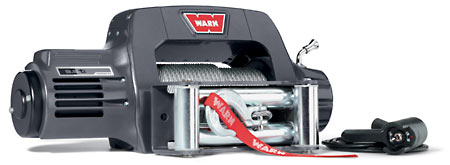

9.5Ti Winch, 12V, 125', Roller Fairlead
|
List Price: $1,802.65
Your Price: $1,267.49
Item Number: 67550
Manufacturer: Warn
Manufacturer Part No: 67550
|
|
The WARN 9.5ti stuffs 9,500 lbs. of pulling power into a compact die-cast aluminum body. What makes this winch so special is its unique operator feedback. A thermometric indicator gives the operator information about motor temperature during the winching process, which translates into more control. For the ultimate in resistance against the elements, the 9.5ti features extreme sealing. Add to this a Gen II Series-Wound motor for an excellent combination of torque and speed, and you've got a truly athletic winch.
|
|
| 9.5ti SPECS/PART NUMBERS
|
| Part Number: PN 67550 (12V DC)
|
| Rated Line Pull: 9500 lbs. (4310 kgs.) single-line
|
| Motor: Gen II, Series WoundTM
|
| Remote Control: Remote, 12' (3.7m) lead, thermometric indicator, S2 elements, integrated flashlight
|
| Geartrain: 3-Stage Planetary
|
| Gear Ratio: 156:1
|
| Lubrication: Aeroshell #17
|
| Clutch (freespooling): Sliding Ring Gear
|
| Brake: Automatic Direct Drive Cone
|
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
|
| Weight: 89 lbs. (36.3kgs.)
|
| Wire Rope: 125', 5/16" diameter (38m, 8mm diam.)
|
| Fairlead: Roller
|
| Recommended Battery: 650 CCA minimum for winching
|
| Battery Leads: 2 gauge, 72" (1.83m)
|
| Finish: Chromate with high-gloss powder coat
|
| Nuts/Bolts: PN 39570
|
|
| 12V DC PERFORMANCE SPECS
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
62(18.9)
|
47 amps
|
1/9500(4313)
|
| 2000(910)
|
16.3(4.97)
|
160 amps
|
2/8650(3927)
|
| 4000(1810)
|
11.8(3.60)
|
230 amps
|
3/7920(3595)
|
| 6000(2720)
|
9.31(2.84)
|
305 amps
|
4/7400(3359)
|
| 8000(3630)
|
7.59(2.31)
|
370 amps
|
5/6940(3150)
|
| 9500(4310)
|
6.67(2.03)
|
425 amps
|
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
Winch Dimensions: 23.1" L. x 6.3" D. x 10.0" H.
(587mm L. x 160mm D. x 254mm H.)
|
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
|
|
