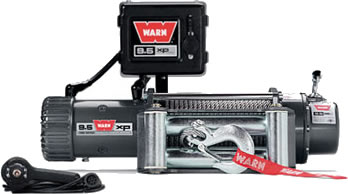

9.5XP Winch, 12V, 125', Roller Fairlead
|
List Price: $1,759.99
Your Price: $1,237.49
Item Number: 68500
Manufacturer: Warn
Manufacturer Part No: 68500
|
|
9.5XP SELF-RECOVERY WINCH
|
WARN® 9.5xp is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world.
The 9.5xp winch features an all new, High Output Parallel Series Wound winch motor that's the strongest and most durable in the industry. The 6 hp motor, 3-stage planetary gearing and continuous duty control pack work in sync to tackle the most demanding pulls. Full face contact drum seals, motor and end housing gaskets deliver extreme-duty water resistance.
|
| 9.5XP SPECS/PART NUMBERS
|
| Part Number: PN 68500 (12V DC)
|
| Rated Line Pull: 9500 lbs. (4310 kgs.) single-line
|
| Motor: 12V 6 hp, High Output Parallel Series Wound
|
| Remote Control: Remote switch, 12' (3.7m) lead
|
| Geartrain: 3-Stage Planetary
|
| Gear Ratio: 156:1
|
| Lubrication: Aeroshell #17
|
| Clutch (freespooling): Sliding Ring Gear
|
| Brake: Automatic Direct Drive Cone
|
| Wire Rope: 125', 5/16" diameter (38m, 8mm diam.)
|
| Fairlead: Roller
|
| Recommended Battery: 650 CCA minimum for winching
|
| Battery Leads: 2 gauge, 72" (1.83m)
|
| Finish: Chromate with high-gloss dark gray powder coat
|
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
|
| Weight: 87 lbs. (39.5 kgs.)
|
|
| 12V DC PERFORMANCE SPECS
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
38(11.6)
|
70 amps
|
1/9500(4313)
|
| 2000(910)
|
16.8(5.1)
|
175 amps
|
2/8650(4927)
|
| 4000(1818)
|
12.8(3.9)
|
262 amps
|
3/7920 (3595)
|
| 6000(2720)
|
10.1(3.1)
|
335 amps
|
4/7400(3359)
|
| 8000(3630)
|
8.8(2.7)
|
425 amps
|
5/6940(3150)
|
| 9500(4310)
|
7.6(23)
|
480 amps
|
|
|
Above performance specs are based on first layer of drum
|
Winch Dimensions: 22.7" L. x 6.3" D. x 7.7" H.
(557mm L. x 160mm D. x 196 mm H)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
|
|
