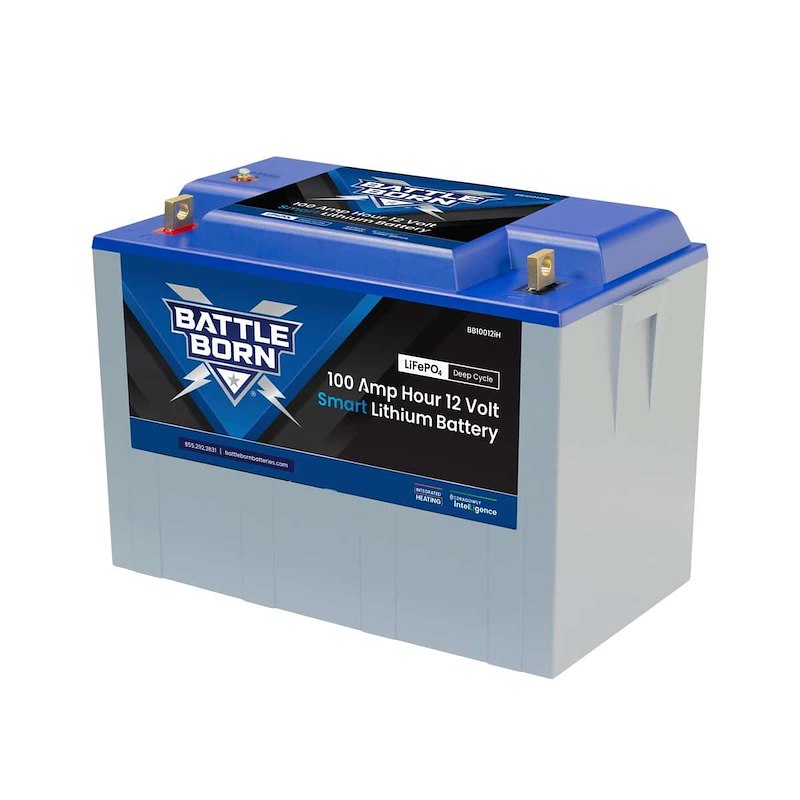

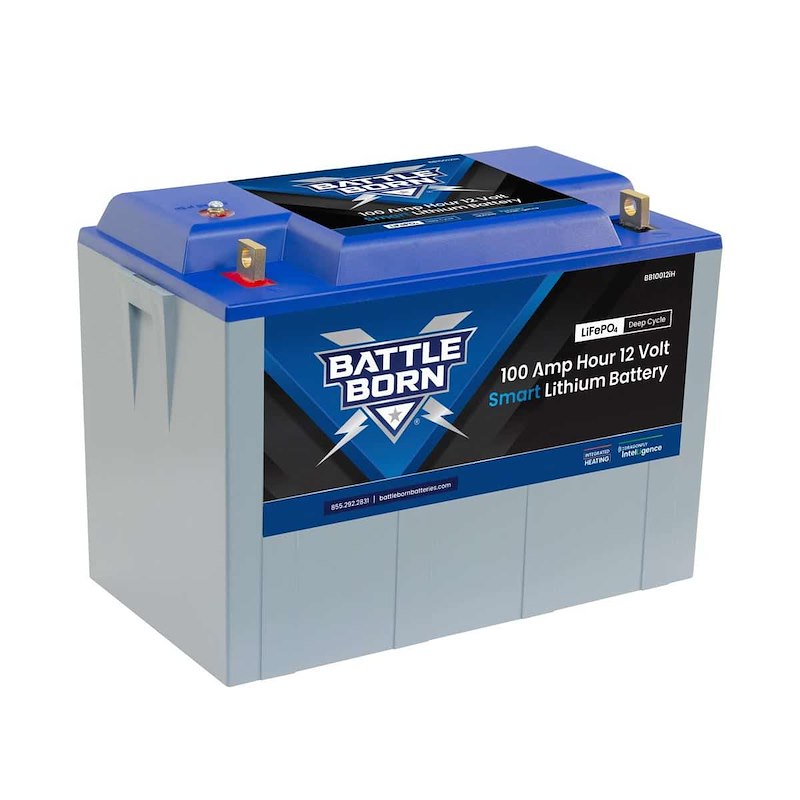

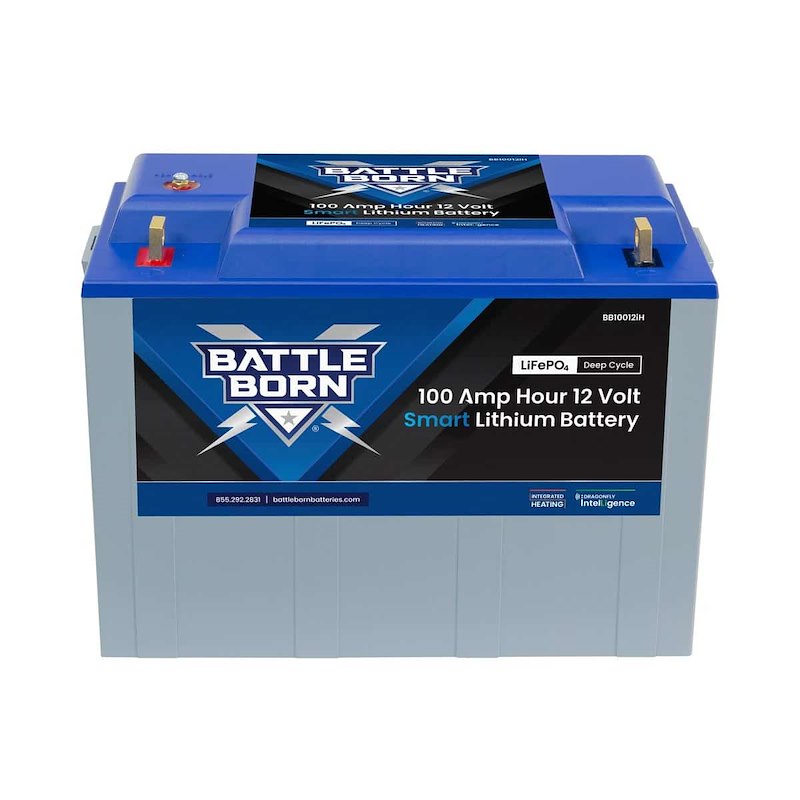

Battle Born Batteries BB10012IH LiFePO4 Heated Battery Kit

12V - 100 Ampere Hour Capacity - 12.76" Length x 6.86" Width x 8.95" Height
Part Number
BB10012IH
Manufacturer
Battle Born Batteries
MFG. Part No
649275328336
Your Price:
$1,049.00 free shipping

Item Description

Phone in Picture is Not Included

The 100Ah 12V Smart Heated LiFePO4 Deep Cycle Battery Kit delivers safe, reliable, long-lasting, and intelligent power – no matter the weather you might face. Equipped with a proprietary, low draw Integrated Heating technology, this smart battery is ready to charge and provide superior power, even in cold temperatures.

Offering all the same benefits Battle Born® Heated Lithium Batteries have brought to adventurers around the globe for nearly a decade, this 100Ah 12V Smart Heated Battery features smart battery technology that opens the doors to full power system connectivity, communication, and safety.

  • Dragonfly IntelLigence® Technology delivers proprietary smart battery communication via a Wireless Mesh Network
  • Remote Monitoring of individual batteries or full power system via the Battle Born Mobile App
  • Battle Born HUB required for to take advantage of full system monitoring in multi-battery systems
  • Error Detection & Warnings for the utmost safety through real-time notifications of critical information
  • Integrated Heating Technology warms the battery’s internal cells in cold temperatures
  • Drop-In Replacement for Group 27 & 31 batteries

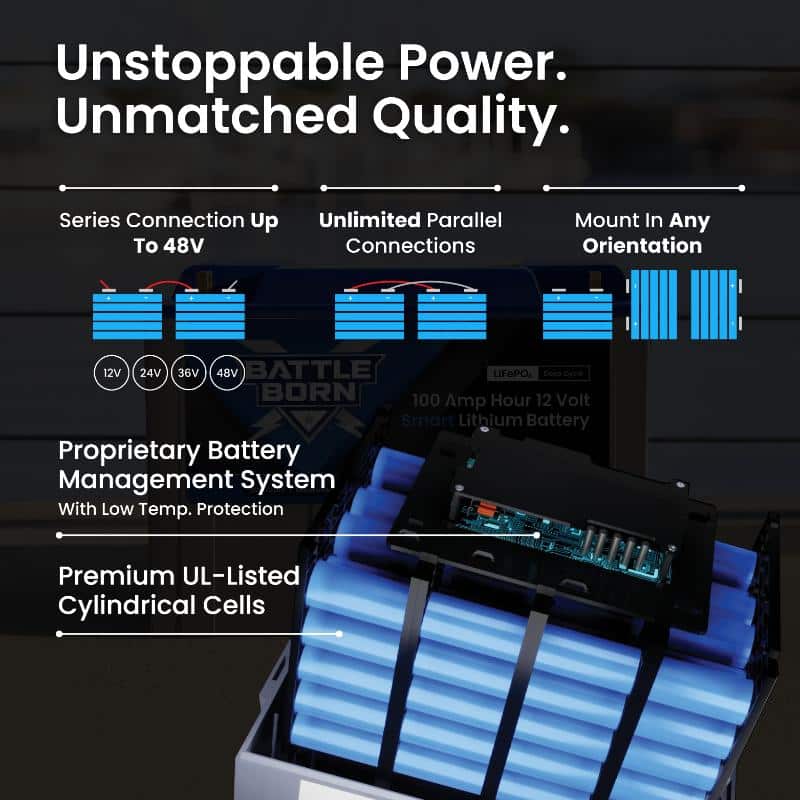

  • Designed for Versatility with series or parallel wiring, any orientation mounting, and use in various RV, marine, industrial, and off-grid applications
  • Safe, Non-Toxic lithium iron phosphate (LiFePO4) chemistry
  • Internal BMS featuring protections for low temperature, high and low voltage, short circuits, and more

Some features of the Dragonfly IntelLigence technology are coming soon and will become available with future firmware updates.

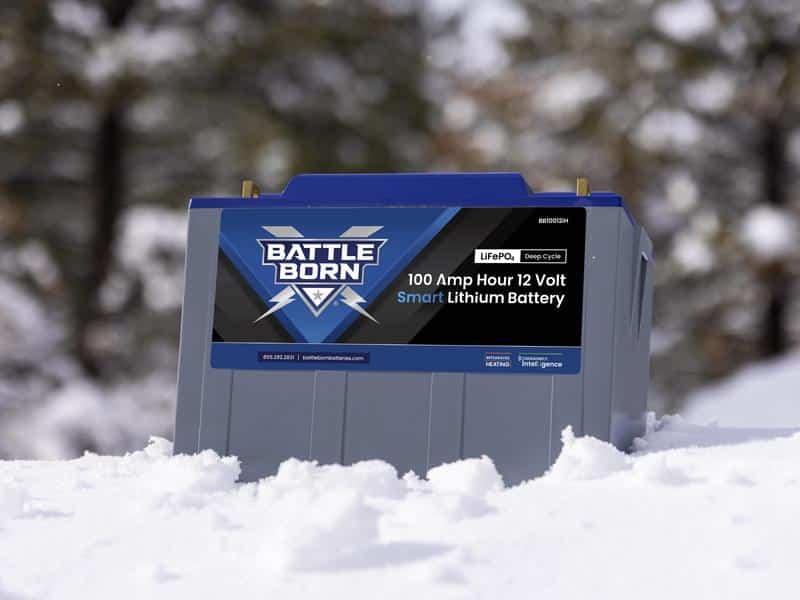

Integrated Heating Technology:

  • Allows for Cold Weather Charging
  • Low Continuous Power Draw When Enabled
  • Integrated Heating Technology Activated at Internal Temperature of ~35°F (*When Heat Function is Enabled)
  • Operating Temperature Range of -4°F to 135°F

Specifications:

  • Voltage: 12V
  • Capacity: 100Ah
  • Ah PbEq: 200Ah
    • * Ah PbEq is based on the equivalent usable amp-hour compared to a lead acid system.
  • Self Discharge: 2-3% per Month
  • Maximum Series Voltage: 48V
  • Cycle Life: 3,000-5,000
  • Resistance: 7 mΩ
  • Usable Depth of Discharge: 100%

Accepted Voltages:

  • Charging voltage: 14.2 – 14.6 V
  • Float voltage: 13.4 – 13.8 V

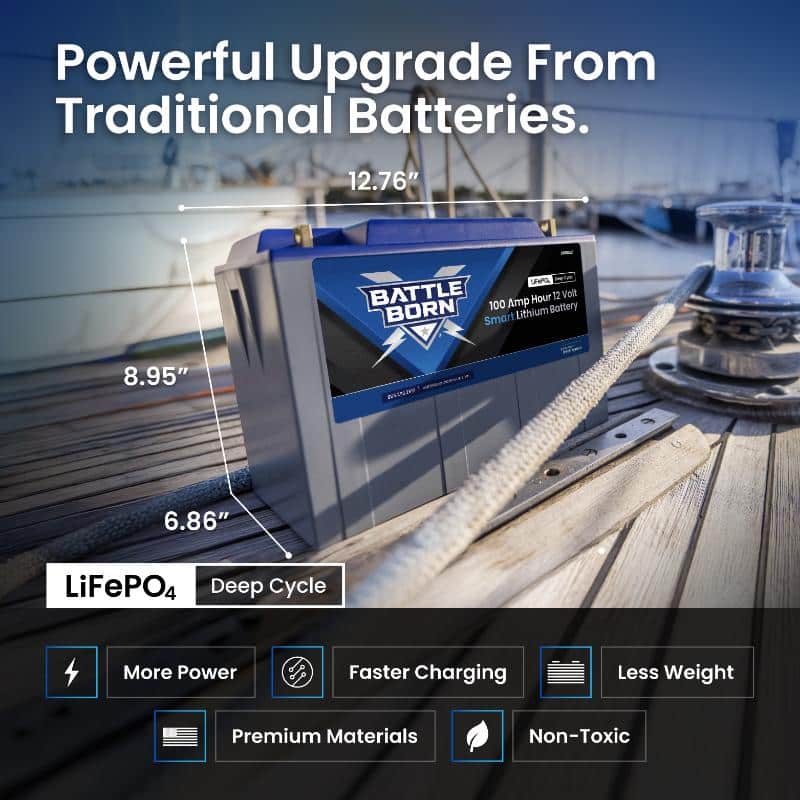

Dimensions (L x W x H):

  • 12.76 x 6.86 x 8.95 in.

Ships With:

  • 18-8 stainless steel 5/16 – 18 1” and 1-1/4” bolts
  • Brass washers
  • 18-8 stainless steel nuts with nylon inserts

Items in Each Heated Battery Kit Include:

  • 1 -SPST Rocker Switch
  • 1 -25’ 18 AWG wire terminated with 0.187 QD and #8 ring lug
  • 1 -25’ 18 AWG wire terminated with 0.187 QD and 5/16 ring lug
  • 1 – Jumper wire (for use if when installing more than one heat-enabled battery model):
    • 1 -14-inch 18 AWG wire terminated with two #8 ring lugs
    • 2 -M4 x 5mm long Philip head screws
    • 1 -#8 ring lug
    • 1 -1-inch piece of shrink wrap

Please Note: A CSL is required for use with inverters 3500W or higher.
