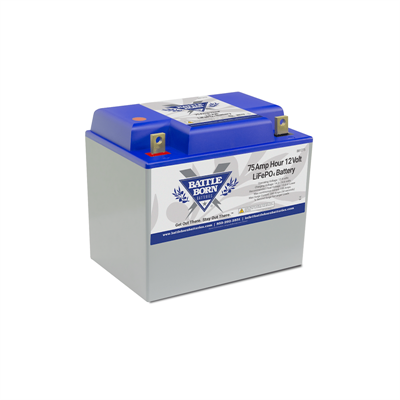

Battle Born Batteries BB1275 Lithium Flat Top Terminal Deep Cycle Battery Group 24 Battery

Item Description

The powerful 75Ah 12V Group 24 LiFePO4 Deep Cycle Battery delivers superior, long-lasting performance and is built with maximum flexibility and versatility. It’s time to upgrade your existing Group 24 batteries with a lightweight and safe lithium solution, ideal for various applications.

• Drop-In Replacement for Group 24 batteries
• Designed for Versatility with the ability to be wired in series or parallel and mounted in any orientation
• Safe & Reliable lithium iron phosphate (LiFePO4) chemistry
• Rugged Battery Design built for RV, camper van, boat, trolling motor, and industrial applications
• Lightweight at just 27 pounds for 75Ah of usable power
• Long-Lasting with 3,000-5,000 deep discharge cycles providing up to 10-15 years of power
• Internal BMS featuring low temperature protection, high and low voltage, short circuits, and more

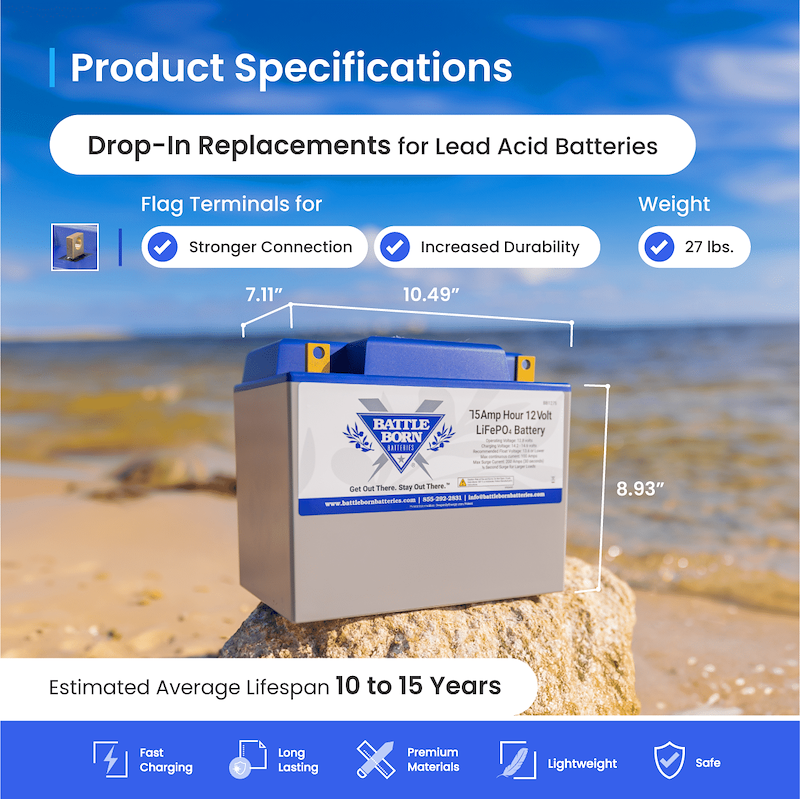

Specifications:

• Voltage: 12V
• Capacity: 75Ah
• Ah PbEq: 150Ah
  • * Ah PbEq is based on the equivalent usable amp-hour compared to a lead acid system.
• Self Discharge: 2-3% per Month
• Maximum Series Voltage: 48V
• Cycle Life: 3,000-5,000
• Resistance: 10 mΩ
• Usable Depth of Discharge: 100%

Accepted Voltages:

• Charging voltage: 14.2 – 14.6 V
• Float voltage: 13.4 – 13.8 V

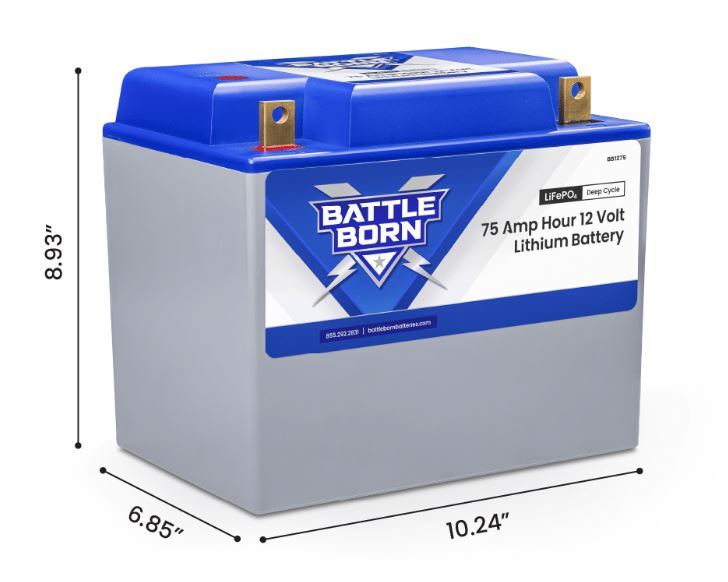

Dimensions (L x W x H):

• 10.49 x 7.11 x 8.93 in.

Ships With:

• 18-8 stainless steel 5/16 – 18 1” and 1-1/4” bolts
• Brass washers
• 18-8 stainless steel nuts with nylon inserts

Please Note: A CSL is required for use with inverters 3500W or higher.
