Battle Born Batteries BBGC2H-1KIT LiFePO4 Heated Battery Kit

Item Description

This 100Ah 12V Heated GC2 LiFePO4 Deep Cycle Battery by Battle Born Batteries delivers superior and long-lasting performance! Equipped with a proprietary, low draw internal heating technology, this lithium battery is ready to charge and provide superior power no matter the cold weather you may face.

• Drop-In Replacement for 6V GC2 lead acid batteries
• Designed for Versatility with the ability to be wired in series or parallel and mounted in any orientation
• Safe & Reliable lithium iron phosphate (LiFePO4) chemistry
• Rugged Battery Design built for RV, camper van, boat, trolling motor, industrial, off-grid, and residential backup applications
• Lightweight at just 31 pounds for 100Ah of usable power power
• Long-Lasting with 3,000-5,000 deep discharge cycles providing up to 10-15 years of power
• Internal BMS featuring low temperature protection, high and low voltage, short circuits, and more

Internal Heat Technology:

• Proprietary internal heating capabilities
• Operating Temp Range:-4°F to 135°F
• Heat activated when internal temperature reaches ~35°F (and heat function is enabled)

Specifications:

• Voltage: 12V
• Capacity: 100Ah
• Ah PbEq: 200Ah
  • * Ah PbEq is based on the equivalent usable amp-hour compared to a lead acid system.
• Self Discharge: 2-3% per Month
• Maximum Series Voltage: 48V
• Cycle Life: 3,000-5,000
• Resistance: 12 mΩ
• Usable Depth of Discharge: 100%

Accepted Voltages:

• Charging voltage: 14.2 – 14.6 V
• Float voltage: 13.4 – 13.8 V

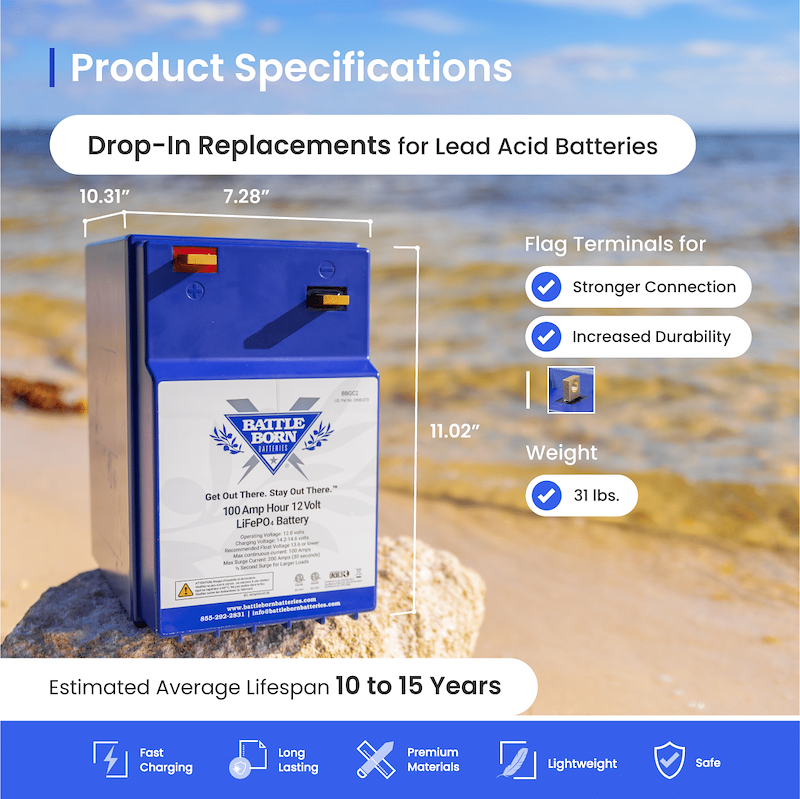

Dimensions (L x W x H):

• 10.31 x 7.28 x 11.02 in.

Ships With:

• 18-8 stainless steel 5/16 – 18 1” and 1-1/4” bolts
• Brass washers
• 18-8 stainless steel nuts with nylon inserts

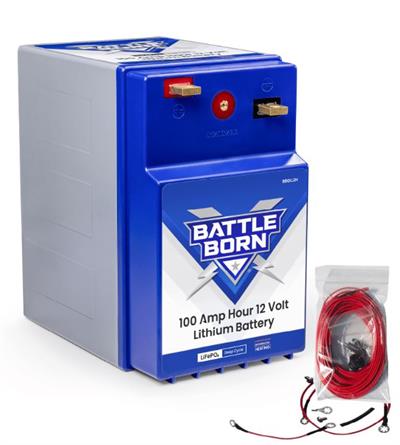

Items in Each Heated Battery Kit Include:

• 1 -SPST Rocker Switch
• 1 -25’ 18 AWG wire terminated with 0.187 QD and #8 ring lug
• 1 -25’ 18 AWG wire terminated with 0.187 QD and 5/16 ring lug
• 1 – Jumper wire (For use if you are installing more than one heat-enabled battery model):
  • 1 -14-inch 18 AWG wire terminated with two #8 ring lugs
  • 2 -M4 x 5mm long Philip head screws
  • 1 -#8 ring lug
  • 1 -1-inch piece of shrink wrap

Please Note: A CSL is required for use with inverters 3500W or higher.
