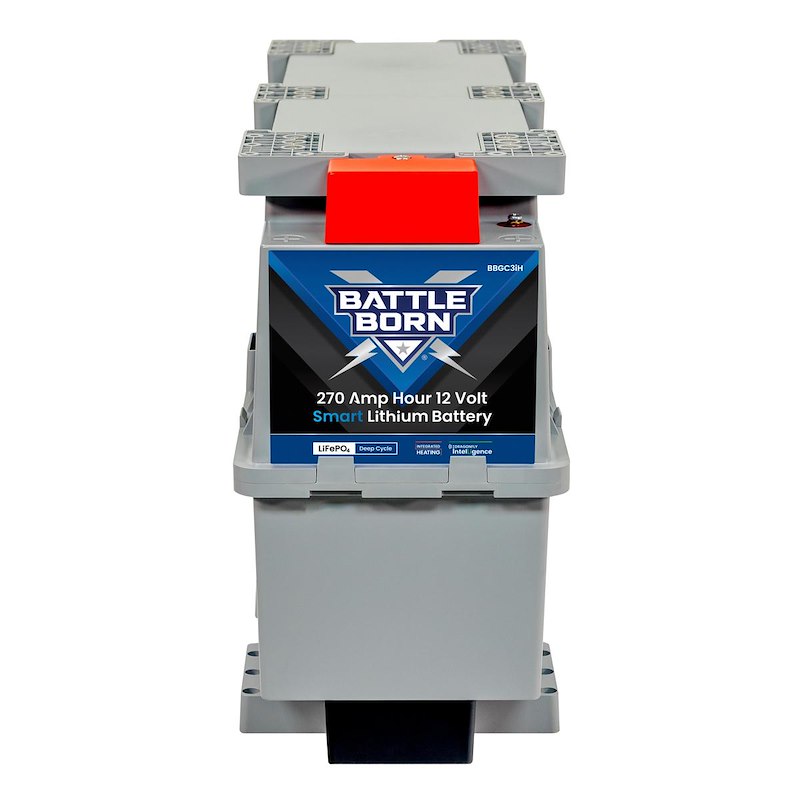

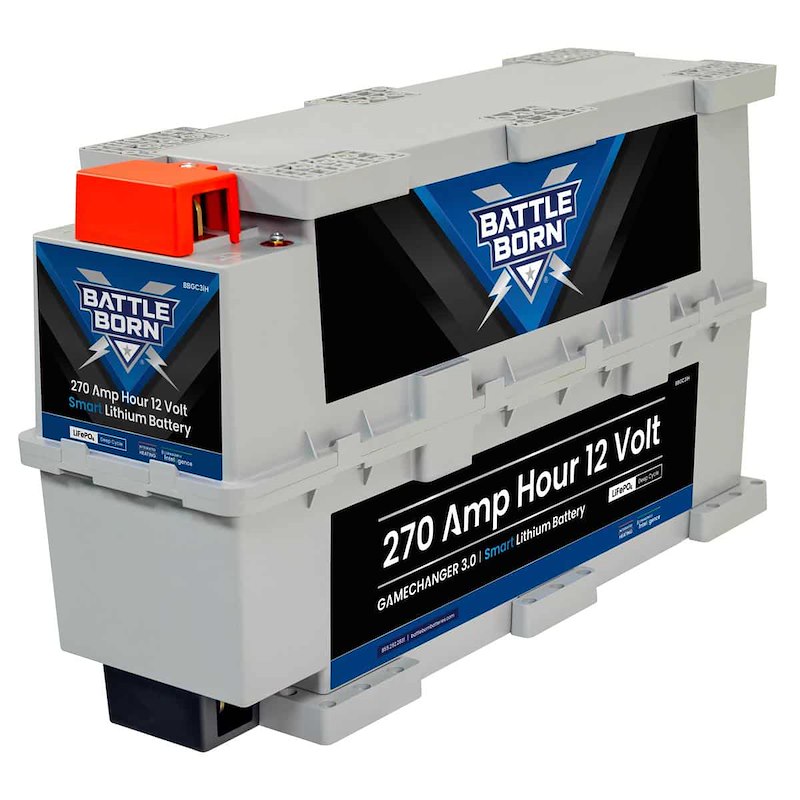

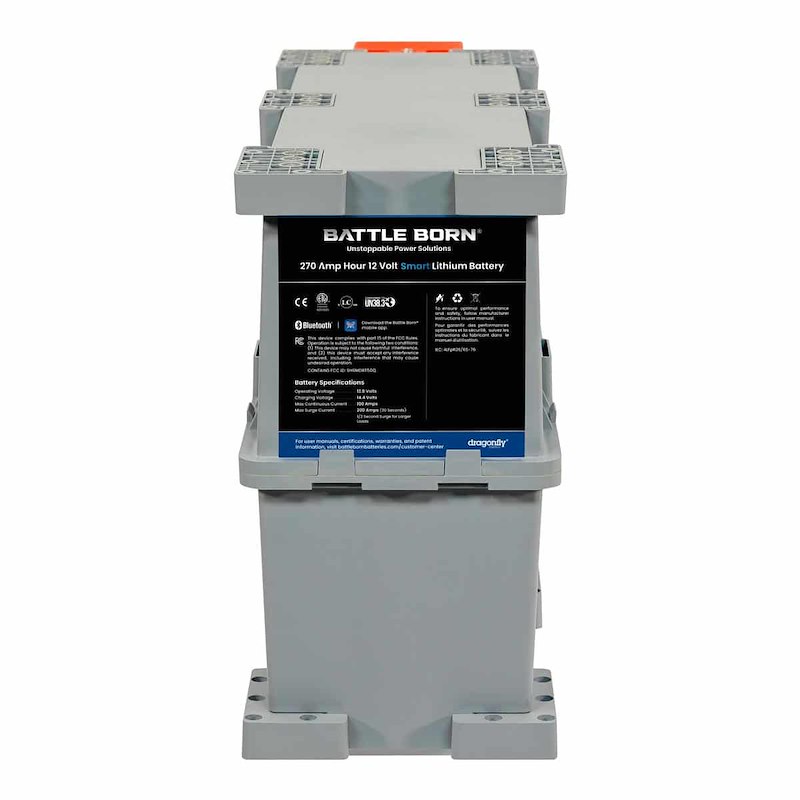

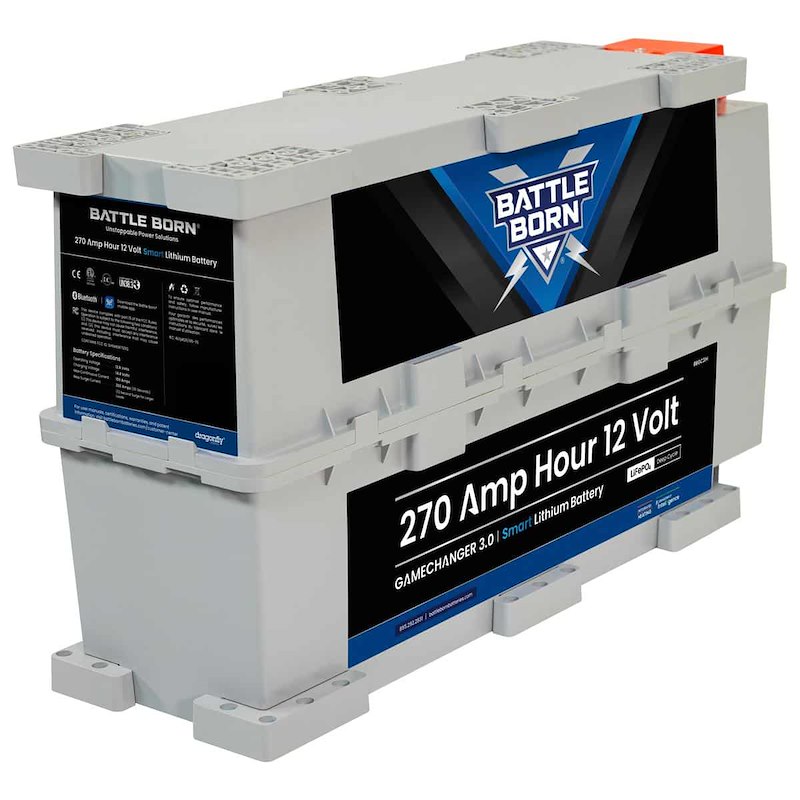

Battle Born Batteries BBGC3IH LiFePO4 Heated Battery Kit

Item Description

This powerful 270Ah 12V GC3 Smart Heated LiFePO4 Deep Cycle Battery Kit  is the ultimate Gamechanger – a safe, reliable, long-lasting, and intelligent power, no matter the weather you might face. Equipped with a proprietary, low draw Integrated Heating technology, this smart battery is ready to charge and provide superior power, even in cold temperatures.

Offering all the same undeniable benefits the Battle Born® GC3 Heated Gamechanger has brought to adventurers around the globe for nearly a decade, the 270Ah 12V GC3 Heated Smart Battery by Battle Born features smart battery technology that opens the doors to full power system connectivity, communication, and safety.

• Dragonfly IntelLigence® Technology delivers proprietary smart battery communication via a Wireless Mesh Network
• Remote Monitoring of individual batteries or full power system via the Battle Born Mobile App
• Battle Born HUB required for to take advantage of full system monitoring in multi-battery systems
• Error Detection & Warnings for the utmost safety through real-time notifications of critical information
• Integrated Heating Technology warms the battery’s internal cells in cold temperatures
• Battery Size that’s patented and proprietary for maximum power in any space

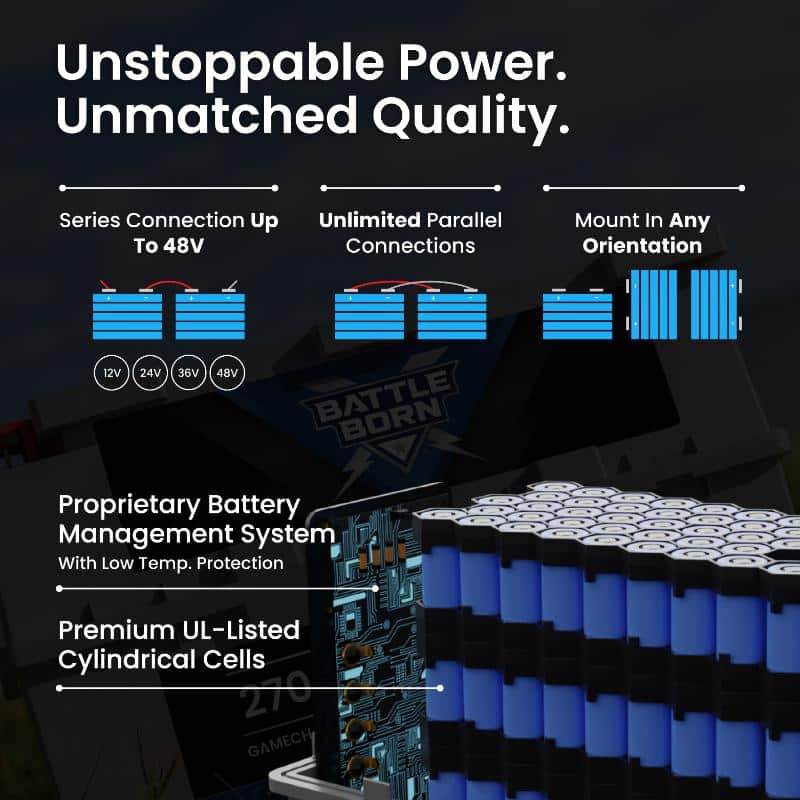

• Designed for Versatility with series or parallel wiring, any orientation mounting, and use in various RV, marine, industrial, and off-grid applications
• Safe, Non-Toxic lithium iron phosphate (LiFePO4) chemistry
• Internal BMS featuring protections for low temperature, high and low voltage, short circuits, and more

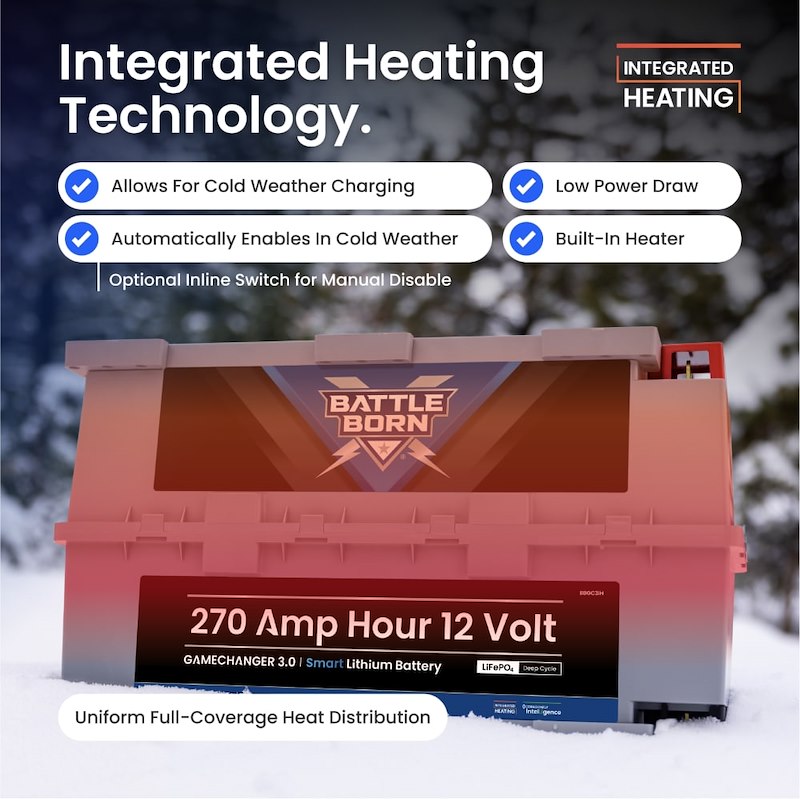

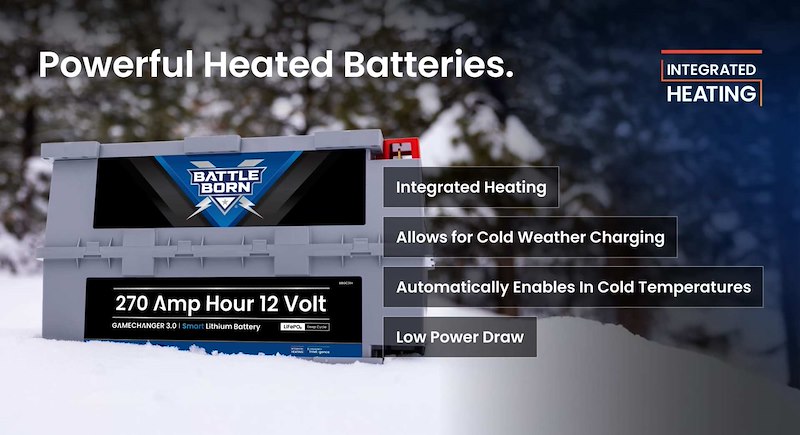

Integrated Heating Technology:

• Allows for Cold Weather Charging
• Low Continuous Power Draw When Enabled
• Integrated Heating Technology Activated at Internal Temperature of ~35°F (*When Heat Function is Enabled)
• Operating Temperature Range of -4°F to 135°F

Specifications:

• Voltage: 12V
• Capacity: 270Ah

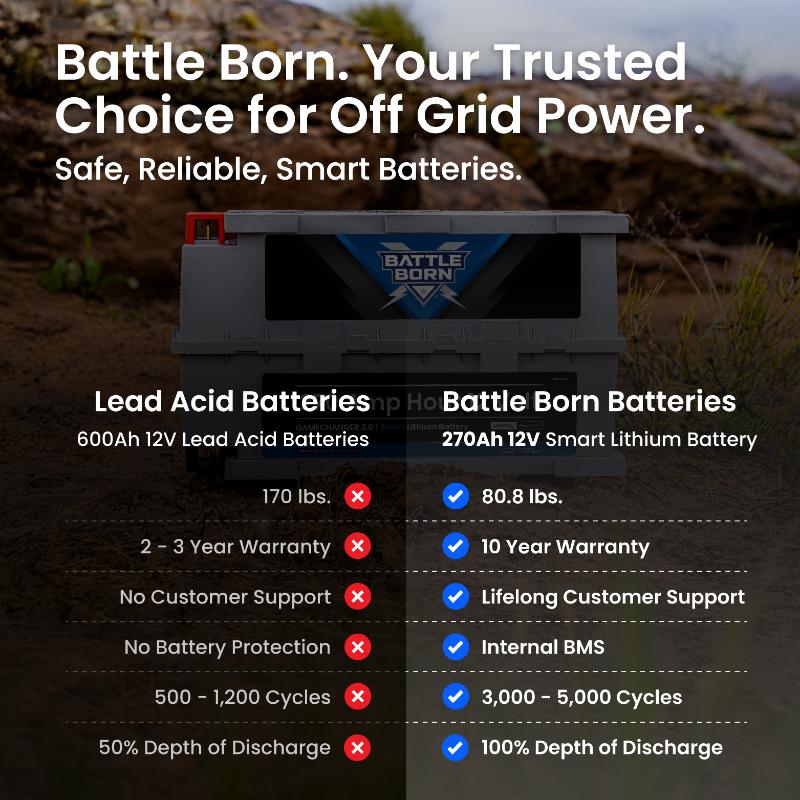

• Ah PbEq: 540Ah
  • * Ah PbEq is based on the equivalent usable amp-hour compared to a lead acid system.
• Self Discharge: 2-3% per Month
• Maximum Series Voltage: 48V
• Cycle Life: 3,000-5,000
• Resistance: 5 mΩ
• Usable Depth of Discharge: 100%

Accepted Voltages:

• Charging voltage: 14.2 – 14.6 V
• Float voltage: 13.4 – 13.8 V

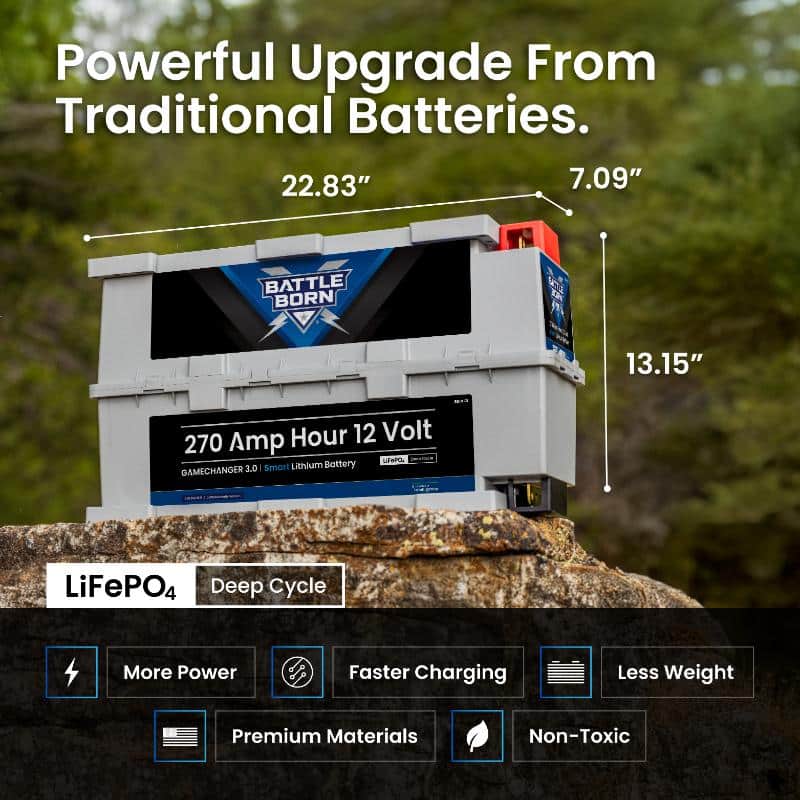

Dimensions (L x W x H):

• 22.83 x 7.09 x 13.15 in.

Ships With:

• 18-8 stainless steel 5/16 – 18 1” and 1-1/4” bolts
• Brass washers
• 18-8 stainless steel nuts with nylon inserts

Each GC3 Comes Standard With:

• (1) Black Terminal Cover
• (1) Red Terminal Cover
• (2) 25mm M5 Screws for Terminal Covers

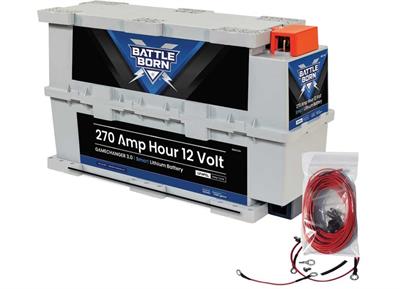

Items in Each Heated Battery Kit Include:

• 1 -SPST Rocker Switch
• 1 -25’ 18 AWG wire terminated with 0.187 QD and #8 ring lug
• 1 -25’ 18 AWG wire terminated with 0.187 QD and 5/16 ring lug
• 1 – Jumper wire (for use if when installing more than one heat-enabled battery model):
  • 1 -14-inch 18 AWG wire terminated with two #8 ring lugs
  • 2 -M4 x 5mm long Philip head screws
  • 1 -#8 ring lug
  • 1 -1-inch piece of shrink wrap

Please Note: A CSL is required for use with inverters 3500W or higher.
