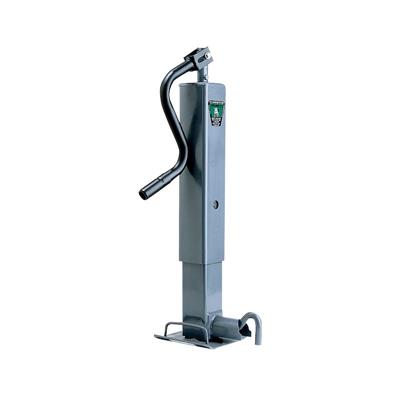

Bulldog 182304 Topwind Square Weld-On Trailer Tongue Jack

10000 lb Lift - 12000 lb Support Capacity - 12-1/2" Travel - 23.4" Retracted x 49.4" Extended Height
Part Number
182304
Manufacturer
Reese / Tow Ready / Draw Tite
MFG. Part No
016118242560
Your Price:
$233.57
More on order, due in soon

Item Description

Trailer Tongue Jack; Manual Square Topwind Jack; 10000 Pound Lift/ 12000 Pound Support Capacity; 12-1/2 Inch Travel; 23.4 Inch Retracted X 49.4 Inch Extended Height; Weld-On Mount; Painted Outer/ Inner Tube; Steel; Without Bracket; With Crank

Operation Type: Manual
Capacity: 10000 Pound
Maximum Lift: 12-1/2 Inch
Mounting Type: Weld-On
Type: Square Topwind
Number Of Wheels: Without Wheel
Color/ Finish: Gray Painted
Swivel: No
Retracted Height: 23.4 Inch
Extended Height: 49.4 Inch
Clearance: Adjustable
Material: Steel
Estimated Install Time (Hours): 0.5
Marine: Yes
  • 4 Inch Square Tubing,7 Gauge Superior Alloy Steel
  • Drop Leg Option With 5 Positioning Holes
  • Easy Access Gear Box With Grease Fitting For Routine Maintenance
  • Spring Return Drop Leg Or Non-Spring Return Drop Leg
  • Front Facing Drop Leg Plunger Pin Or Side Facing Drop Leg Plunger Pin
  • 12.5 Inch Screw Travel, 13.5 Inch Of Additional Adjustment With Drop Leg
  • Limited 5 Year Warranty
