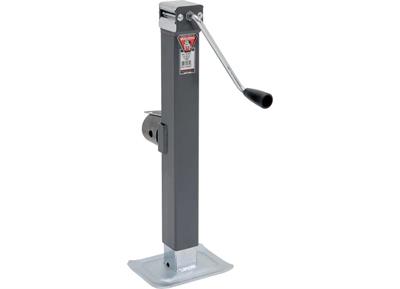

Bulldog 190756 Square Sidewind Swivel Style Weld-On Trailer Tongue Jack

5000 lb Lift - 8000 lb Support Capacity - 15" Travel - 12.16" Retracted x 27.16" Extended Height - 12.4" Clearance
Part Number
190756
Manufacturer
Reese / Tow Ready / Draw Tite
MFG. Part No
783192023599
Your Price:
$136.04
More on order, due in soon

Item Description

Trailer Tongue Jack; Manual Square Sidewind Swivel Jack; 5000 Pound Lift/ 8000 Pound Support Capacity; 15 Inch Travel; 12.16 Inch Retracted X 27.16 Inch Extended Height; 12.4 Inch Clearance; Painted Outer/ Zinc Plated Inner Tube; With Bracket

Operation Type: Manual
Capacity: 5000 Pound
Maximum Lift: 15 Inch
Mounting Type: Weld-On
Type: Square Sidewind
Number Of Wheels: Without Wheel
Color/ Finish: Gray Painted
Swivel: Yes
Retracted Height: 12.16 Inch
Extended Height: 27.16 Inch
Clearance: 12.4 Inch
Material: Steel
Marine: Yes
  • Zinc-Plated Inner Tube And Drop Leg
  • 4.7 Inch Outer/Inner Tube Overlap Results In Optimal Side Load Performance
  • 5/8 Inch Screw Stem Provides Insurance Against Screw Stem Twisting Off
  • Patented Screw Nut Stop Prevents Screw And/Or Nut Damage When Jack Is Fully Extended
  • Topwind Models - Bushing In Top Cap, Eagle Claw Grip
  • 1/4 Inch Cross Pin Connects Gear Train To Screw Stem - Guards Against Shearing Jack Pin
  • Limited 5 Year Warranty
