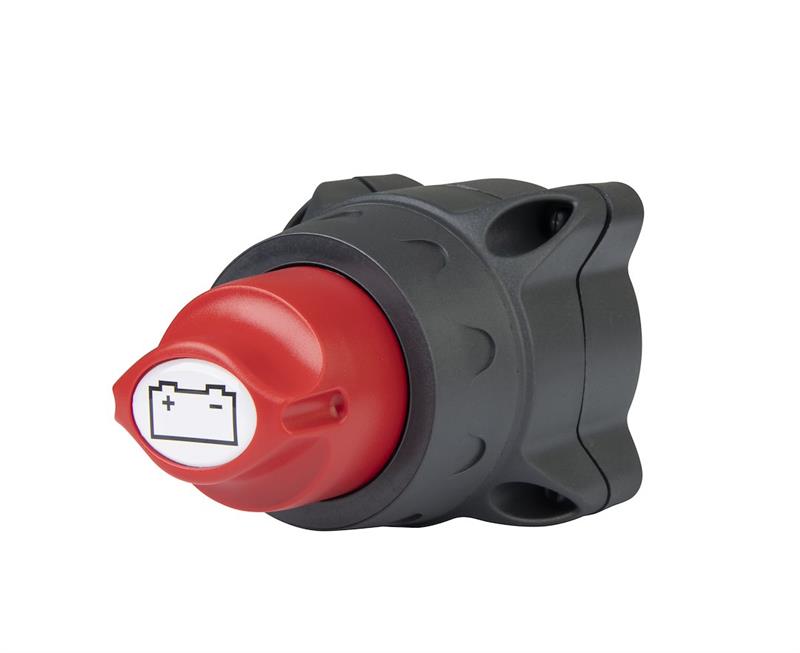

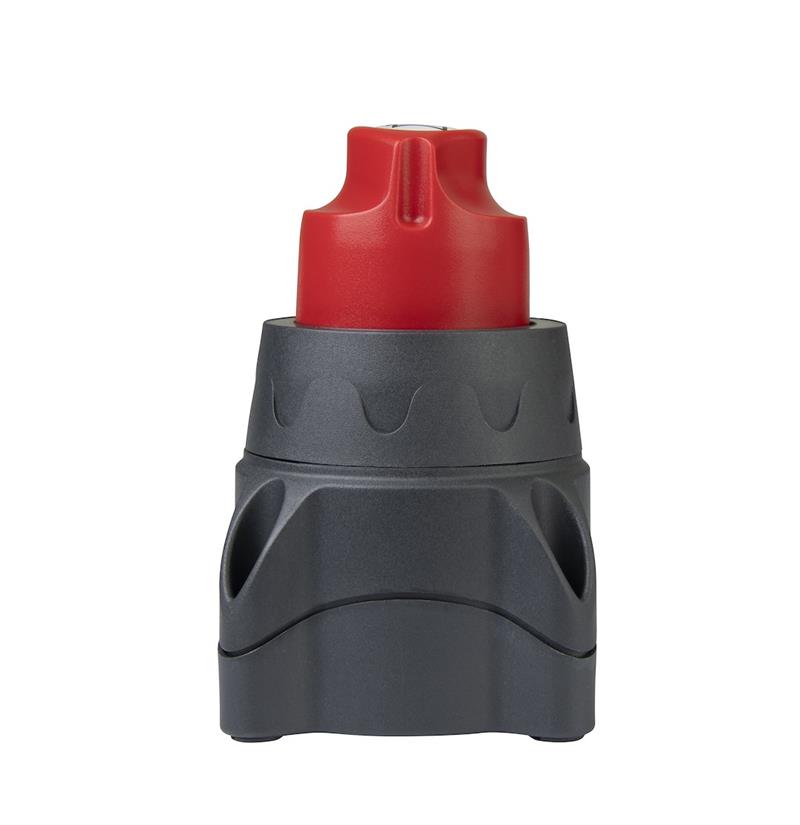

Marinco 700RV Easyfit Battery Disconnect Switch

Recessed Or Surface Mount Switch - 275A DC Continuous - 455A DC Intermittent - 1250A DC Cranking
Part Number
700RV
Manufacturer
Park Power/Marinco
MFG. Part No
093344311697
Your Price:
$38.40

Item Description

Removable threaded ring for easy recessed installation through panels up to 3/4" thick. Features on/off operation, a removable key past the off position, labeled handle, a removable back plate covering exposed terminals, 3/8" stud size, and tin plated copper studs and nuts. Can be surface mounted and retrofitted in place of most post and lever type switches. Rated at 275A continuous, 445A intermittent, 1250A cranking and 48V. Ignition protected.

Type: Key Type On/ Off Switch
Activation Type: Manual
Continuous Ampere Rating (A): 275 Amp
Surge Ampere Rating (A): 1250 Amp
Installation Type: Bolt-On

  • Durable. Designed With A Removable Key, Labeled Handle And A Removable Back Cover Covering Exposed Terminals
  • Ignition Protected
  • Tin Plated Copper Studs And Nuts
  • Surface Mounted Offering A Unique Style Compared To Other Switches Available On The Market
  • Limited 5 Year Warranty
