ENDURANCE 12.0
|
List Price: $1,519.99
Your Price: $1,276.77
Item Number: 73010
Manufacturer Part No: 73010
|
|

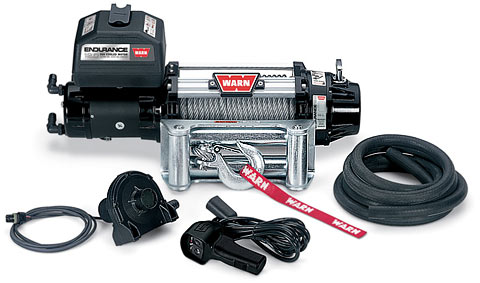

NEW! WARN ENDURANCE 12.0
A NEW WAY TO KEEP YOUR COOL WHILE WINCHING
|
|
Once again, Warn Industries is set to revolutionize the winch world. We've developed a product with more stamina than any other winch of its kind. More power. More speed. More endurance. This is no ordinary winch: This is the WARN Endurance 12.0.
This winch gives you 12,000 lbs. of pulling capacity with an increased duty cycle - the secret is its innovative cooling system. Here's how it works:
The specially designed cooling fan (which is mounted under the vehicle's hood) automatically turns on when the winch's motor reaches a certain temperature. The fan forces air through a hose and directly into the winch's motor housing, cooling the motor. The air then flows out of the motor housing via a second hose and is discharged.
The Endurance 12.0 has other outstanding features including a heavy-duty contactor for increased durability and reliability, and a high-speed, three-stage planetary geartrain for fast, smooth, and dependable operation. For the ultimate in good looks and corrosion resistance, the winch wears a durable, glossy-black powder-coated finish. Much of the hardware, including the clutch lever, is stainless steel for added protection against the elements. The Endurance 12.0 also features extreme-duty winch sealing to keep the elements out. And, because this is a WARN winch, it has a limited lifetime warranty backed by a world-wide service organization.
When you want a winch that'll really go the distance, you want a winch with serious endurance: The WARN Endurance 12.0.
|
|
ENDURANCE 12.0 SPECS/PART NUMBER
|
|
Part Number: 73010
|
|
Rated Line Pull: 12,000 lbs. (5440 kg)
|
|
Motor: Series-Wound 4.6 hp 12V
|
|
Remote Control: Remote switch, 12' (3.7m) lead
|
|
Geartrain: 3-stage planetary
|
|
Gear Ratio: 216:1
|
|
Clutch (freespooling): Sliding ring gear
|
|
Brake: Mechanical cone brake
|
|
Drum Diameter/Length: 2.5" diam./9" length (6.4cm/22.9 cm)
|
|
Wire Rope: 80' of 3/8" (24m of 9.5mm diam.)
|
|
Fairlead: Roller
|
|
Recommended Battery: 650 CCA minimum for winching
|
|
Battery Leads: 2 gauge, 72" (1.83m)
|
|
Finish: High-gloss black powdercoat
|
|
Nuts/Bolts: PN 39625
|
|
|
12V DC PERFORMANCE SPECS
|
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
|
0 (0)
|
39.5 (12.0)
|
47.8 amps
|
1/12,000 (5440)
|
|
2000 (910)
|
15.1 (4.60)
|
127.0 amps
|
2/9517 (4317)
|
|
4000 (1810)
|
10.4 (3.17)
|
192.0 amps
|
3/7886 (3577)
|
|
6000 (2720)
|
7.7 (2.35)
|
257.0 amps
|
4/6732 (3054)
|
|
8000 (3630)
|
6.1 (1.86)
|
316.0 amps
|
|
|
9500 (4310)
|
4.8 (1.46)
|
358.0 amps
|
|
|
12000 (5440)
|
3.4 (1.04)
|
429.0 amps
|
|
|
|
|
|
Above performance specs are based on first layer of drum
|
|
|
