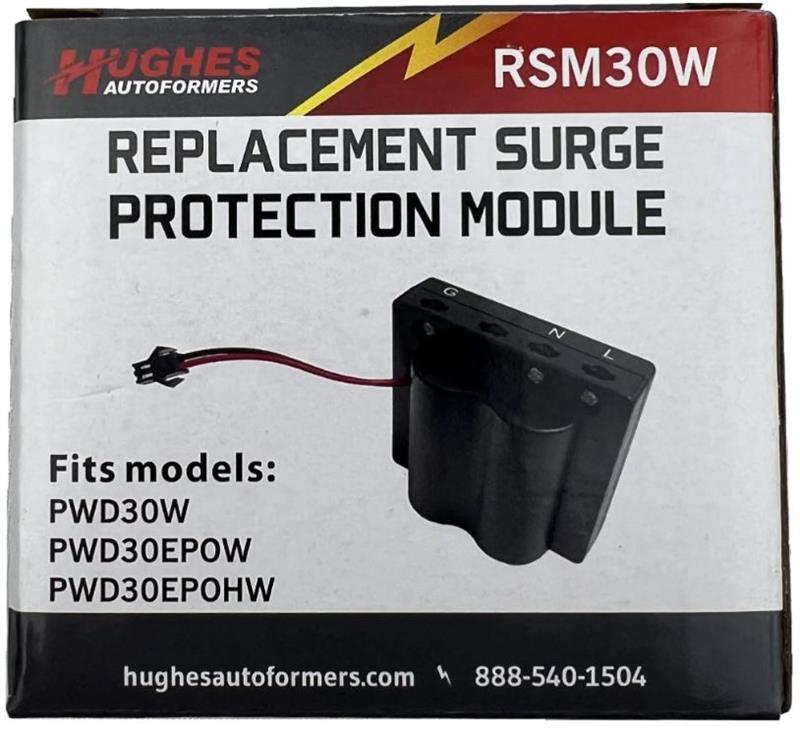

Hughes RSM30W Power Watchdog Gen II Replacement Surge Module for 30-Amp WiFi Surge Protector
Use w/ Hughes PWD30EPOW, PWD30EPOHW, PWD30W & WPC30 Power Watchdog Gen II Surge Protectors
More on order, due in soon
Prop65: Prop 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Description
*** This replacement surge protection module is only for the PWD30EPOW, PWD30EPOHW, PWD30W, WPC30 units. It is designed for use only with the 30 Amp 'generation 2' WiFi and Watchdog Powercenter units. ***
THIS IS NOT COMPATIBLE WITH GEN 1 UNITS!
Simple installation! The only tool required is a Phillips screw driver.
-
UNPLUG THE UNIT - make sure unit is fully disconnected from any power prior to installation.
-
Unscrew 6 Phillips screws on the back of the unit (*7 screws for the EPO versions).
-
Unscrew the top cable gland nut and move it up the cord.
-
Carefully, separate the two halves of the body
-

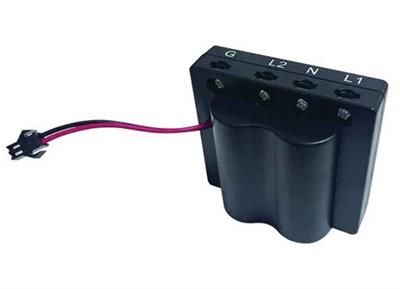

The surge module slides in/out of the slot. Unclip the one red/black wire, and loosen the screws holding the fork wire connectors to the wire leads.
-
Disconnect the old surge module from the unit.
-
Connect the new surge protection module and wires. "G" is ground and green color, "N" is neutral and white color, "L
-
Replace all the screws and re-tighten the cable gland nuts.
|
|
