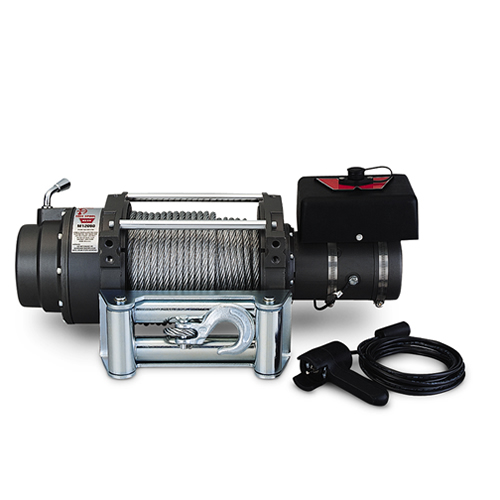

M12000 Winch, 12V, 125', Roller Fairlead

M12000 SELF-RECOVERY WINCH
For heavy-duty winching needs, this winch is a champion workhorse. Big torque, power and quick no-load retrieval speed is 30 feet per minute. Its design is low profile, so it'll fit where you want. And it's powered by the 4.6 hp Series Wound motor and our proven three-stage planetary gear train. With 125 ft. of 3/8" wire rope, the WARN M12000 can solve most any pulling problem.

M12000 SPECS/PART NUMBERS:

Part Numbers: PN 17801 (12V DC), PN 178012 (12V DC, CE),
PN 265072 (24V DC, CE)

Rated line pull: 12000 lbs. (5440 kgs.) single-line

Motor: 12V 4.6 hp, 24V 2.5 hp Series WoundTM

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-Stage Planetary

Gear ratio: 261:1

Lubrication: Aeroshell #17

Clutch (freespooling): Rotating Ring Gear

Brake: Automatic Direct Drive Cone

Drum diameter/Length: 3.5"/8.2" (9cm/21cm)

Weight: 136 lbs. (62 kgs.)

Wire rope: 125', 3/8"diameter (38m, 9.5mm diameter)

Replacement wire rope: PN 15712, PN 38423(CE)

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finish: Argent Powder Coat

Nuts/bolts: PN 39572

CE winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, power interrupt kit, roller fairlead, safety hook and thimble.

12V DC PERFORMANCE SPECS:

Above performance specs are based on first layer of drum

Winch Dimensions: 25" L. x 8.5" D. x 11" H.
(556mm L. x 215mm D. x 279mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
