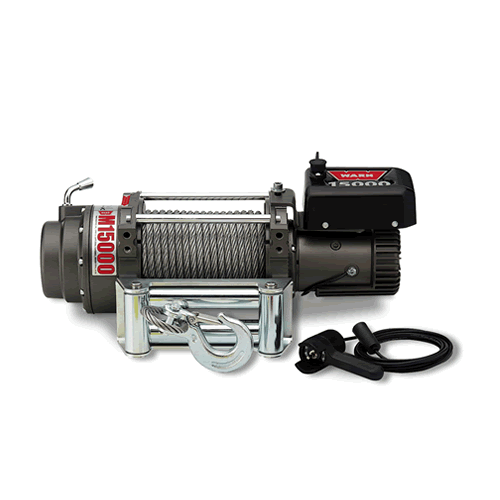

M15000 Winch, 12V, 90', Roller Fairlead
|
List Price: $2,405.32
Your Price: $1,691.24
Item Number: 47801
Manufacturer: Warn
Manufacturer Part No: 47801
|
|
M15000 SELF-RECOVERY WINCH
This WARN winch boasts new high strength carrier plates to handle the gear train stresses of a 15,000 lb load. The gear ratio is 315:1, with 90 feet of 7/16" wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access.
M15000 SPECS/PART NUMBERS:
Part Numbers: PN 47801 (12V DC), PN 475502 (12V DC, CE),
PN 478022 (24V DC, CE)
Rated line pull: 15000 lbs. (6800 kgs.) single-line
Motor: 12V 4.6 hp , 24V 2.5 hp Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 315:1
Lubrication: Molylube #1 or Aeroshell #17
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 3.5"/8.2" (9cm/21cm)
Weight: 136 lbs. (62kgs.)
Wire rope: 90', 7/16" diameter (27m, 11mm diam.)
Replacement wire rope: PN 61950
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent Powder Coat
Nuts/bolts: PN 61946
Line Pull
Lbs.(Kgs.)
0
2200(910)
4400(2000)
6600(300)
8800(4000)
11000(5000)
13200(6000)
15000(6800)
|
Line Speed
Ft./min.(M/min.)
28(8.6)
10.2(2.3)
7.5(2.3)
6.9(2.1)
6.6(2.0)
6.2(1.9)
5.2(1.6)
4.3(1.3)
|
Motor
Current
24 amps
85 amps
115 amps
142 amps
170 amps
190 amps
210 amps
235 amps
|
Pull by layer:
layer/Lbs(Kgs.)
1/15000(6800)
2/13900(6300)
3/11400(5200)
4/9700(4400)
|
Above performance specs are based on first layer of drum
Winch Dimensions: 25" L. x 8.5" D. x 11" H.
(556mm L. x 215mm D. x 279mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
|
|
