M6000 SDP 12V Winch with Multi Mount
|
List Price: $1,173.32
Your Price: $824.99
Item Number: 39116
Manufacturer: Warn
Manufacturer Part No: 39116
|

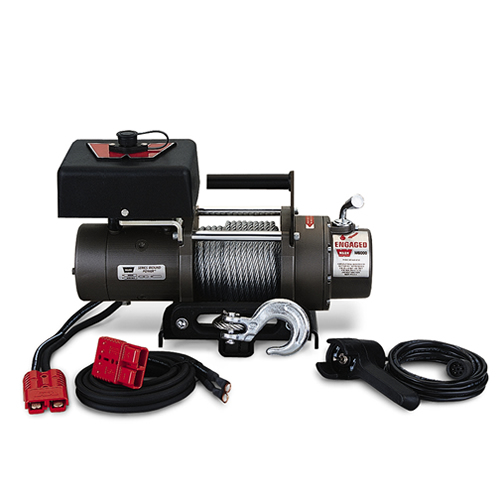

M6000 SDP PORTABLE SELF-RECOVERY WINCH
This short-drum portable winch for small sport utility vehicles provides plenty of pulling power, can be mounted single-handedly and stores in a snap. Line retrieval speeds have increased - up 27% at no-load, 233% at full pull. This compact winch comes complete with handle/ mounting system for a Class III 2" receiver, hawse fairlead, remote control with 3.7m lead, free spool clutch and battery cable.
M6000 SDP SPECS/PART NUMBERS:
Part numbers: PN 39116 (12V DC)
Rated line pull: 6000 lbs. (2722 kgs) single-line
Motor: 4.8 hp, Series Wound
Remote Control: Remote switch, 12' (3.7m) lead
Gear train: 3-Stage Planetary
Gear ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 2.5"/5.0" (26.4cm/13cm)
Weight: 72 lbs. (31 kgs.)
Wire rope: 50', 5/16" diameter (15m, 8mm diameter)
Replacement wire rope: PN 61346
Fairlead: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m) w/quick disconnects
Finish: Argent Powder Coat
Nuts/bolts: PN 39625
Warranty: Limited Lifetime
12V DC PERFORMANCE SPECS:
|
Line Pull
Lbs.(Kgs.)
0
2000(907)
4000(1814)
6000(2722)
|
Line Speed
Ft./min.(M/min.)
48.5(14.78)
23.7(7.22)
12.9(3.93)
10.0(3.05)
|
Motor
Current
85 amps
175 amps
360 amps
465 amps
|
Pull by layer:
layer/Lbs(Kgs.)
1/2722(6000)
2/2477(5460)
3/2268(5000)
4/2118(4670)
|
Above performance specs are based on first layer of drum
Winch Dimensions: 16.89" L. x 6.3" D. x 12.49" H.
(429mm L. x 160mm D. x 317mm H.) |
|
|
|
|
