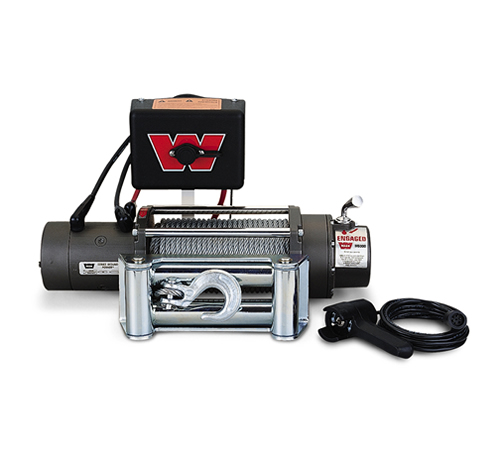

M6000 SELF-RECOVERY WINCH
This is our medium-to-light duty winch. Designed to be compact, its 4.8 hp Series WoundTM motor can still pull 6,000 lbs., making it ideal for smaller vehicles with big ideas.
M6000 SPECS/PART NUMBERS:
Part Numbers: PN 45880 (12V DC), PN 458802 (12V DC, CE),
PN 465052 (24V DC, CE), PN 37960 (12V, DC, CE Short Drum)
Rated line pull: 6000 lbs. (2720 kgs) single-line
Motor: 12V 4.8hp, 24V 1.7hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m.) lead
Gear train: 3-Stage Planetary
Gear ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs.)
Wire rope for PN 45880, 458802, 465052: 80', 5/16" diameter (24m, 8mm diameter)
Wire rope for PN 37960: 50', 5/16" diameter (15m, 8mm diameter)
Fairlead for PN 45880, PN 458802, PN465052: Roller
Fairlead for PN 37960: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent Powder Coat
Nuts/bolts: PN 39625
CE winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, power interrupt kit, roller fairlead, safety hook and thimble.
12V DC PERFORMANCE SPECS:
|
Line Pull
Lbs.(Kgs.)
0
2000(910)
4000(1810)
6000(2720) |
Line Speed
Ft./min.(M/min.)
48.5(14.8)
23.7(7.22)
12.9(3.93)
10.0(3.05) |
Motor
Current
85 amps
175 amps
360 amps
465 amps |
Pull by layer:
layer/Lbs(Kgs.)
1/6000(2722)
2/5460(2477)
3/5000(2268)
4/4670(2118) |
Above performance specs are based on first layer of drum
Winch Dimensions: 21.04" L. x 6.3" D. x 7.61" H
(534mm L. x 160mm D. x 193mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) |
