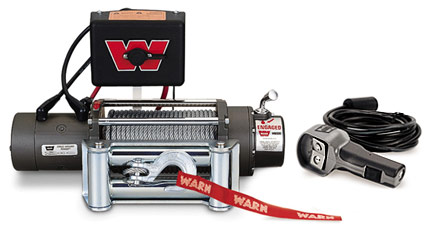

M8000 Winch , 12V, 100' Wire Rope - Roller Fairlead
|
List Price: $1,279.99
Your Price: $899.99
Item Number: 26502
Manufacturer: Warn
Manufacturer Part No: 26502
|
| M8000 SELF-RECOVERY WINCH |
This compact, robust unit is not only powerful, but it's an outstanding value. The M8000 has a powerful 4.8 hp. Series-Wound motor, 3-stage planetary geartrain, and can pull up to 8,000 lbs. - perfect for most trucks and SUVs, including Jeeps. This winch is available with either 80' of wire rope and a hawse fairlead or 100' of rope with a roller fairlead.
|
| M8000 SPECS/PART NUMBERS |
| Part Number: PN 20910 CE (12V DC) 80' wire rope and hawse fairlead |
| Part Number: PN 26502 CE (12V DC) 100' wire rope and roller fairlead |
| Part Number: PN 265032 CE (24V DC) 100' wire rope, roller fairlead, safety hook and thimble |
| Rated Line Pull: 8000 lbs. (3630 kgs.) single-line |
| Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM |
| Remote Control: Remote, 12' (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 216:1 |
| Lubrication: Aeroshell #17 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) |
| Weight: 74 lbs. (34 kgs.) |
| Wire Rope: 80', 5/16" diam. (24m, 8mm diam.) or 100', 5/16" diam. (30m, 8mm diam.) |
| Fairlead for PN 20910: Hawse |
| Fairlead for PN 26502, 265022, 265032: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Argent Gray Powder Coat |
| Nuts/Bolts: PN 39625 |
|
| 12V DC PERFORMANCE SPECS |
Line Pull
Lbs.(Kgs.) |
Line Speed
FT./min(M/min.) |
Motor
Current |
Pull by layer
layer/Lbs(Kgs.) |
| 0 |
42(12.8) |
80 amps |
1/8000(3629) |
| 2000(910) |
16(4.88) |
200 amps |
2/7280(3302) |
| 4000(1810) |
11.9(3.63) |
285 amps |
3/6670(3026) |
| 6000(2720) |
9.79(2.98) |
350 amps |
4/6230(2826) |
| 8000(3630) |
8.01(2.44) |
435 amps |
|
|
| 24V DC PERFORMANCE SPECS |
Line Pull
Lbs.(Kgs.) |
Line Speed
FT./min(M/min.) |
Motor
Current |
Pull by layer
layer/Lbs(Kgs.) |
| 0 |
27.3(8.32) |
46 amps |
1/8000(3629) |
| 2000(910) |
17.1(5.21) |
99 amps |
2/7460(3384) |
| 4000(1810) |
12.6(3.84) |
145 amps |
3/3980(3166) |
| 6000(2720) |
10.3(3.14) |
190 amps |
4/6620(3003) |
| 8000(3630) |
8.8(2.68) |
235 amps |
|
|
| |
| Above performance specs are based on first layer of drum |
|
Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H.
(534mm L. x 160m D. x 193mm H.) |
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) |
|
|
|
|
