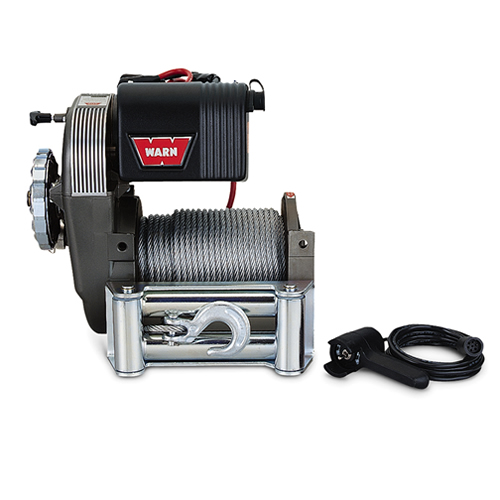

M8274-50 Winch, 12V, 150', Roller Fairlead
|
List Price: $2,495.99
Your Price: $1,754.99
Item Number: 38631
Manufacturer: Warn
Manufacturer Part No: 38631
|
|
M8274-50 SELF-RECOVERY WINCH
Loved by off-roaders who compete for prizes, the WARN M8274-50 is one of our fastest winches. No load retrieval speed is 73.4 feet per minute. At 150 feet of 5/16" cable, it also has a very long line capacity. Its unique spur-gear drive train and upright design are totally rugged and its braking system delivers smooth operation with superior heat rejection. Roller fairlead, remote control on 12-ft. lead, free spool clutch and battery cables are included.
M8274-50 SPECS/PART NUMBERS:
Part Numbers: PN 38631 (12V DC), PN 386312 (12V DC, CE) PN 375832 (24V DC, CE)
Rated line pull: 8000 lbs. (3630 kgs.) single-line
Motor: 12V 4.6 hp/3.43kw, 24V 2.5 hp/3.43kw, Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: Spur Gear Gear ratio 134:1
Lubrication: 6 oz. SAE 30 (non-detergent)
Clutch (freespooling): Sliding Motor Pinion Gear
Brake: Automatic, disc type
Drum diameter/Length: 3.5"/8.5" (9cm/22cm)
Weight: 110 lbs. (50 kgs.)
Wire rope: 150', 5/16" diameter (46m, 8mm diameter)
Replacement wire rope: PN 26749, PN 38311 (CE)
Fairlead: Roller
Recommended Battery: 650 CCA for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent Powder Coat with Clear Coat
Nuts/bolts: Nut PN 7616, L/W: PN 2146, Bolt: PN 7165
CE winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, power interrupt kit, roller fairlead, safety hook and thimble.
12V DC PERFORMANCE SPECS
|
Line Pull
Lbs.(Kgs.)
0
2000(910)
4000(1810)
6000(2720)
8000(3630)
|
Line Speed
Ft./min.(M/min.)
74.4(22.4)
22(6.71)
12(3.66)
9.50(2.90)
6.10(1.86)
|
Motor
Current
55 amps
190 amps
275 amps
350 amps
450 amps
|
Pull by layer:
layer/Lbs(Kgs.)
1/8000(3629)
2/7460(3384)
3/6980(3166)
4/6620(3003)
5/6290(2853)
|
Above performance specs are based on first layer of drum
Winch Dimensions: 16.5" L. x 8.5" D. x 15" H. (420mm L. x 220mm D. x 381 mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
|
|
|
|
|
