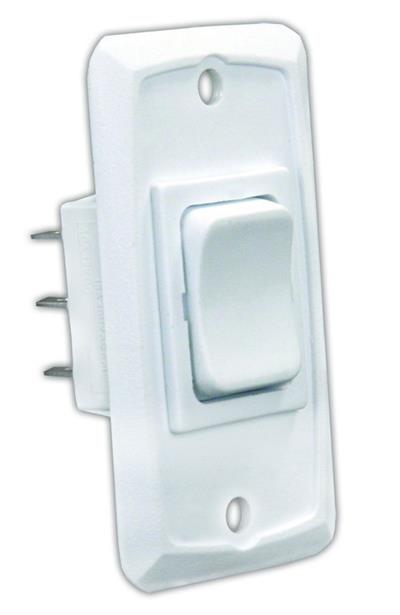

JR Products 12835 White Double Pole Double Throw Multi Purpose Rocker Switch
Momentary On-Off-On - 12V - 20A at 125V AC - 15A at 250V AC - 40A at 12V DC
UPC: 756815128353 Prop65: WARNING: This product contains chemicals known to the State of California to cause both Cancer and Reproductive Harm.
Item Description
Multi Purpose Switch; On-Off-On; Momentary; 12 Volt; 20 Amp At 125 Volt AC/ 15 Amp At 250 Volt AC/ 40 Amp At 12 Volt DC; Double Pole Double Throw; Rocker; 1.25 Inch x 0.84 Inch Cutout; 2.75 Inch x 1.80 Inch (Switch); Non-Lighted; White
Design: RockerActivation: MomentarySwitch Positions: On-Off-OnOperation: Double Pole Double ThrowCurrent Rating: 15/ 20/ 40 AmpNumber Of Switches: 1Color: WhiteIllumination: Non-IlluminatedMarine: NoVoltage: 12/ 125/ 250 VoltConnector Gender: MaleTerminal Type: Blade
- This Single Switch Is Designed For Functionally With A Simple And Timeless Style
- Made For A Number Of Uses Inside The RV And Out
- This Double Pole Double Throw (DPDT) Rocker Switch Is Very High Quality For A Long Usable Life
- The Switch Panel Also Provides Easy Use With A Contoured Design
- UL/CSA/VDE Approved
- Limited Lifetime Warranty
|
|
