Power Plant Dual Force HP 9,500 Winch/ 12V Air Compressor

List Price: $2,133.32
Your Price: $1,499.99
Item Number: 71800
Manufacturer: Warn
Manufacturer Part No: 71800

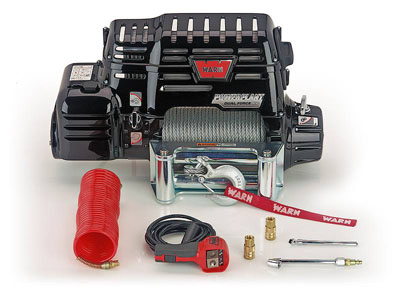

You want the best-equipped vehicle on the trail, so you need the WARN PowerPlant HP. A potent air compressor and a winch with fast line speed
will help you lead the pack on the toughest trails.
A premium on-board air compressor and a winch with fast line speed
are perfect for off-road enthusiasts.
Rapidly air up tires and power air tools, such as an impact wrench for changing a tire.
Self-contained unit is easy to install with no additional wiring or
plumbing necessary. That means more time on the trail and less time
in the garage. Additional accessories let you use the PowerPlant to its maximum potential.


Air Compressor Mode
In air compressor mode, PowerPlant is a robust, integrated system that performs above and beyond other air compressors, thanks to industry-leading features such as a massive 4.6 horsepower motor; a built-in intercooler to reduce air temperature; and a high airflow rating of 12 cfm at 0 psi, and 5 cfm at 90 psi.

Powerplant compressor mode   Powerplant compressor mode   Powerplant compressor mode


Winch Mode
When called upon as a winch, PowerPlant answers with the features you would expect from a WARN product: a 3-stage planetary geartrain; a Gen II Motor; a new contactor design that requires less current draw and improves reliability; and an automatic load-holding brake for effective winch operation and positive operator feedback.

Powerplant Winch Mode   Powerplant Winch Mode   Powerplant Winch Mode



  Watch Video
Watch the award-winning
PowerPlant Dual Force in action




POWERPLANT HP SPECS/PART NUMBER
Part Number: 71800
Air flow rating: 12 CFM @ 0 psi, 5 CFM @ 90 psi
Max air pressure: 100 psi
Rated Pull: 9,500 lbs. single line
Motor: Series Wound 4.6 hp 12V
Remote Control: Hand-held remote control with thermometric indicator
Geartrain:  3-Stage planetary
Gear Ratio: 156:1
Clutch: Sliding ring gear
Brake: Automatic direct drive cone
Drum Diameter/Length: 2.5"/9.0"
Wire Rope: 125' of 5/16"
Fairlead: Roller
Finish: High gloss, powder coat finish over chromate coating
Weight: 100 lbs




12V DC Performance Data:
Load (lbs.) Current (amps) Speed (fpm)
  9,500 475 5
9,000 454.5 5.2
  8,000 419.9 6.1
6,000 344.9 7.8
  4,000 261.8 10.3
2,000 194.6 14.6
  0 87.7 26.9
