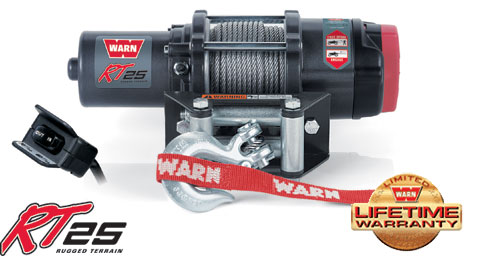

Warn RT 25
|
List Price: $457.60
Your Price: $321.75
Item Number: 75000
Manufacturer: Warn
Manufacturer Part No: 75000
|
WORK OR PLAY - THIS WINCH IS EVERYTHING YOU NEED TO GET THE JOB DONE
This is the winch you want when you need to pull up to 2,500 lbs. using wire rope. As the industry standard, this unit is great for pulling a heavy load or recovering a stuck ATV. Features include our patent-pending brake to hold you on steep inclines, a reliable all-metal 3-stage planetary geartrain, an efficient electrical system that allows for longer pulls with minimal battery drain, and a handlebar-mounted mini-rocker switch for great control.
|
| RT25 SPECS/PART NUMBERS
|
| Part Number: 75000
|
| Rated Line Pull: 2500 lbs. (1134 kgs)
|
| Motor: 12V DC, .9 hp (.7 kW) permanent magnet, Sealed
|
| Control: Sealed handlebar-mounted mini-rocker control switch
|
| Geartrain: All-metal 3-stage planetary
|
| Gear Ratio: 154:1
|
| Clutch (freespooling): Sliding pin and ring gear
|
| Brake: patent-pending disc brake
|
| Rope: 50' Aircraft-grade Wire 3/16" diameter (15m, 5mm diam.)
|
| Drum Diameter/Length: 2.0"/2.9" (52mm / 74mm)
|
| Fairlead: Roller
|
| Recommended Battery: 12 Amp/hour minimum
|
| Battery Leads: 8 gauge
|
| Duty Cycle: Intermittent
|
| Warranty: Limited Lifetime
|
| Mounting Bolt Pattern: 3.0" x 4.88" (76 x 124mm)
|

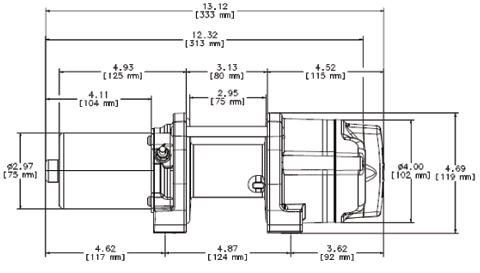

| Winch Dimensions: 13.12" L x 4.51" D x 4.69" H (33.3cm L x 11.5cm D x 11.9cm H)
|
|
| PERFORMANCE DATA
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
18 (5.5)
|
14
|
1/2500 (1134)
|
| 500 (227)
|
16 (4.9)
|
39
|
2/2150 (975)
|
| 1500 (680)
|
10 (3.0)
|
96
|
3/1845 (836)
|
| 2500 (1134)
|
5 (1.5)
|
157
|
4/1586 (719)
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
|
RT25 Specs & Performance Data
