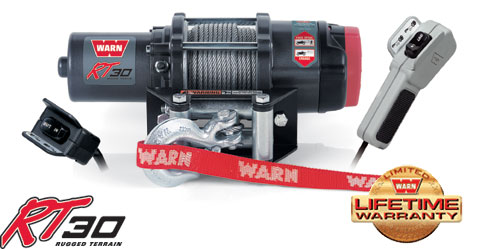

Warn RT 30
|
List Price: $564.27
Your Price: $396.75
Item Number: 76000
Manufacturer: Warn
Manufacturer Part No: 76000
|
FOR BIGGER ATVs AND HEAVIER PULLING JOBS, THIS WINCH HELPS YOU GET THE JOB DONE IN THE FIELD AND ON THE TRAIL.
With a mammoth 3,000 lb. pulling capacity, 50' of durable aircraft-grade wire rope, and a convenient handheld remote, the RT30 has the features you need to get the job done in the field and on the trail. No matter what the situation, the RT30's full sealing means the winch is prepared to do battle against the elements, and it's all-metal 3-stage planetary geartrain will provide countless years of smooth, reliable operation. The patent-pending brake prevents rollback and will hold your vehicle securely on inclines. A standard handheld wired remote and handlebar-mounted mini-rocker switch increases your winching options so you can get the job done right.
|
| RT30 SPECS/PART NUMBERS
|
| Part Number: 76000
|
| Rated Line Pull: 3000 lbs (1360 kgs)
|
| Motor: 12V DC, .9 hp (.7 kW) permanent magnet, Sealed
|
| Controls: Corded remote and handlebar-mounted mini-rocker control switch
|
| Geartrain: All-metal 3-stage planetary
|
| Gear Ratio: 154:1
|
| Clutch (freespooling): Sliding pin and ring gear
|
| Brake: patent-pending disc brake
|
| Drum Diameter/Length: 2.0"/2.9" (52mm / 74mm)
|
| Fairlead: Roller
|
| Rope: 50' Aircraft-grade Wire, 3/16" diameter (15 m, 5mm diam.)
|
| Recommended Battery: 12 Amp/hour minimum
|
| Battery Leads: 6 gauge
|
| Duty Cyle: Intermittent
|
| Warranty: Limited Lifetime
|
| Mounting Bolt Pattern: 3.0" x 4.88" (76 x 124mm)
|

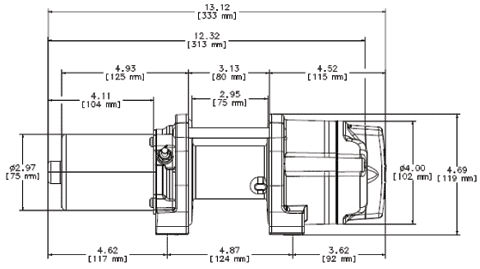

| Winch Dimensions: 13.12" L x 4.51" D x 4.69" H (33.3cm L x 11.5cm D x 11.9cm H)
|
|
| PERFORMANCE DATA
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
18 (5.5)
|
14
|
1/3000 (1360)
|
| 1000 (455)
|
13 (4.0)
|
67
|
2/2580 (1170)
|
| 2000 (907)
|
8 (2.4)
|
125
|
3/2220 (1007)
|
| 3000 (1360)
|
4 (1.2)
|
198
|
4/1910 (866)
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
RT30 Specs & Performance Data
Operator's Manual
Winching Techniques
(English, Français, Español)
Winching Techniques
(Deutsch, Svenska, Italiano, Suomi) |
