Warn RT 40
|
List Price: $712.53
Your Price: $501.00
Item Number: 77000
Manufacturer: Warn
Manufacturer Part No: 77000
|
EXCEPTIONAL PERFORMANCE FOR THE DEMANDS OF UTVs

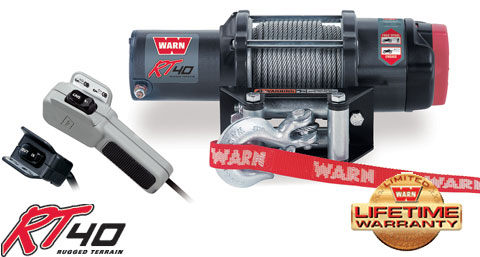

When you need a winch for your UTV, look no further than the RT40: the first winch designed specifically for UTVs. The RT40 has a massive 4,000 lb. line capacity and the longest wire rope in the WARN Powersports winch lineup so you can pull heavier loads farther. This winch has tons of standard features including a patent-pending disc brake that holds strong on inclines, a fully sealed geartrain to guard against the elements, a reliable and smooth-running all-metal 3-stage planetary geartrain, a corded remote and a mini-rocker control, and an efficient electrical system for long pulls and less battery drain. This winch is ready to go to work, so you can get the most out of your UTV.
|
| RT40 SPECS/PART NUMBERS
|
| Part Number: 77000
|
| Rated Line Pull: 4000 lbs. (1814 kgs)
|
| Motor: 12V DC, 1.5hp (1.1 kW) permanent magnet
|
| Controls: Corded remote and mini-rocker control with universal mounting bracket
|
| Geartrain: Sealed, all-metal 3-stage planetary
|
| Gear Ratio: 136:1
|
| Clutch (freespooling): Sliding pin and ring gear
|
| Brake: patent-pending disc brake
|
| Drum Diameter/Length: 2.0"/4.7" (52mm/119mm)
|
| Fairlead: Roller
|
| Rope: 55' Aircraft-grade Wire, 7/32" diameter (16.8m, 5.5 mm diam.)
|
| Recommended Battery: 500 CCA minimum
|
| Battery Leads: 6 gauge
|
| Duty Cyle: Intermittent
|
| Warranty: Limited Lifetime
|
Mounting Bolt Pattern: 3.0" x 6.66" * (76mm x 169mm*)
* Fits UTV winch mounts only.
|

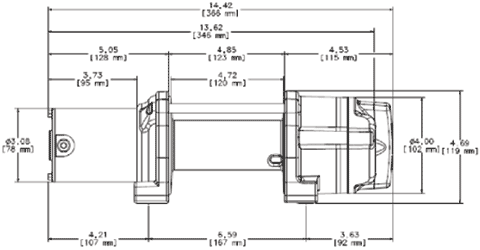

| Winch Dimensions: 14.42" L x 4.51" D x 4.69" H (36.6cm L x 11.5cm D x 11.9cm H)
|
|
| PERFORMANCE DATA
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
25 (7.6)
|
31
|
1/4000 (1814)
|
| 1000 (455)
|
16 (4.9)
|
106
|
2/3440 (1560)
|
| 2000 (907)
|
11 (3.3)
|
175
|
3/2958 (1342)
|
| 3000 (1360)
|
7 (2.1)
|
245
|
4/2544 (1154)
|
| 4000 (1814)
|
4 (1.2)
|
308
|
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
RT40 Performance Data
Operator's Manual
Winching Techniques
(English, Français, Español)
Winching Techniques
(Deutsch, Svenska, Italiano, Suomi) |
