Warn Snowmobile Winch 1.5 - Synthetic Rope
|
List Price: $606.93
Your Price: $426.75
Item Number: 70170
Manufacturer: Warn
Manufacturer Part No: 70170
|
| SnoWinch 1.5 - New Recovery System for Snowmobiles
|
When dirt and rock gives way to snow and ice, you can still take along the trusted recovery power of a WARN® winch.
Introducing SnoWinch 1.5, the industry's first snowmobile recovery system that packs 1,500 lbs. of pulling power to get a sled out of trouble and back on the trail.

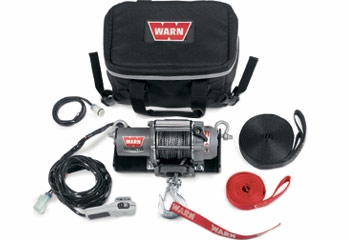

The system comes complete with everything a rider needs to use the winch on a battery-powered snowmobile, including: integrated mounting plate with fairlead and handle; remote with 10' lead; two D-shackles; 8' and 25' recovery straps; and a Quick Connect plug for easy access to the battery power source.
SnoWinch 1.5 can be rigged to pull a snowmobile from either the front or the rear and features 40' of 5/32" synthetic rope that is durable and easy to handle. Stores easily in a custom WARN bag when not in use and weighs just 15 lbs.
|
| SnowWinch 1.5 Specifications/Part Number
|
| Part Number: 70170 CE
|
| Rated Line Pull: 1500lbs (680kg) single-line
|
| Motor: 12V DC .4hp (0.3kW) permanent magnet
|
| Control: Remote Control 10'
|
| Gear Train: 3-stage planetary
|
| Gear Ratio: 103:1
|
| Lubrication: Aeroshell #17
|
| Clutch: Freespooling, Cam activated
|
| Brake: Mechanical Brake
|
| Drum Diameter/Length: 1.5"/3.0" (3,8cm/7,6cm)
|
| Rope: Syntethic, 40', 5/32" diameter (12.2m, 4mm diameter)
|
| Fairlead: Synthetic Hawse
|
| Recommended Battery: 12 Amp/hour minimum for winching
|
| Battery Leads: 10 gauge
|
| Finish: Grey
|
| Duty Cycle: Intermittent
|
| Complete Kit Weight: 15 lb (7.0kg)
|
| Warranty: 1-Year Limited
|
|
| 12 VDC PERFORMANCE SPECS
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
15(4.6)
|
6 amps
|
1/1500(680)
|
| 500(227)
|
11(3.3)
|
27 amps
|
2/1320(599)
|
| 1000(455)
|
7(2.1)
|
44 amps
|
3/1162(527)
|
| 1500(680)
|
5(1.5)
|
65 amps
|
4/1020(463)
|
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
