Warn Tabor 9000lb Winch with Roller Fairlead
|
List Price: $874.65
Your Price: $696.99
Item Number: 900560
Manufacturer: Warn
Manufacturer Part No: 900560
|

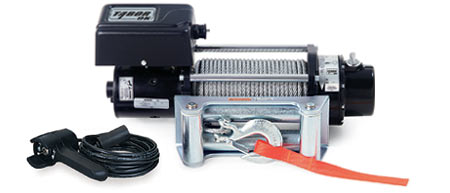

The TABOR 9K Winch is a private label winch made by the most recognized manufacturer in the industry. This winch includes 100' of 5/16 wire rope, hook, Roller Fairlead, 12' Lead Remote Control Switch, 6' Battery Leads and Mounting Bolts. It will fit Warn mounting kits.
Part Number: PN 900560
Rated line pull:8820 lbs. (4000 kgs.) single-line
Motor: 4.3 hp. (3.2kw)
Remote Control: Remote switch, 12' (3.7m) lead
Gear ratio: 261:1
Lubrication: Molylube #1 or Aeroshell #17
Clutch (free spooling): Sliding Ring Gear
Brake: Internal Automatic
Drum diameter/Length: 2.5in. (6.4cm) / 9in. (23cm)
Wire rope: 100', 5/16" diameter (30.5m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 6' (1.83m)
Finish: Black gloss powder coat
Warranty: 1 year limited warranty-mechanical. 90 days-electrical.
Line Pull
Lbs.(Kgs.)
0
2205 (1000)
4410 (2000)
6615 (3000)
8820 (4000)
|
Line Speed
Ft./min.(M/min.)
27.7 (8.4)
14.8 (4.5)
10.3 (3.1)
7.6 (2.3)
5.9 (1.8)
|
Motor
Current
126 amps
237 amps
344 amps
452 amps
559 amps
|
|
|
|
|
