Warn XT 15
|
List Price: $425.60
Your Price: $299.25
Item Number: 78500
Manufacturer: Warn
Manufacturer Part No: 78500
|

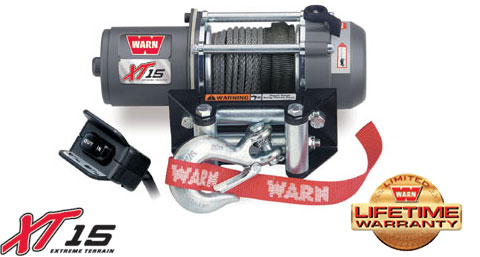

THE PERFECT LIGHTWEIGHT WINCH FOR EXTREME TERRAIN
The XT15 has a 1,500 lb. pulling capacity and lightweight, easy-to-handle synthetic rope, making it perfect for recovering a stuck sport quad, small ATV, or lifting a plow blade. With standard features such as a mechanical brake to prevent rollback, a 3-stage planetary geartrain for reliability, a sealed motor to keep the elements out, and a handlebar-mounted mini-rocker control switch, you can be sure you're getting a powerful, dependable winch that'll let you go prepared.
|
| XT 15 SPECS/PART NUMBERS
|
| Part Number: 78500
|
| Rated Line Pull: 1500 lbs. (680 kgs.)
|
| Motor: 12V DC, 0.4hp permanent magnet, Sealed
|
| Control: Sealed handlebar-mounted mini-rocker switch
|
| Geartrain: 3-stage planetary
|
| Gear Ratio: 103:1
|
| Clutch (freespooling): Cam activated
|
| Brake: patent-pending disc brake
|
| Drum Diameter/Length: 1.5"/3.0"
|
| Fairlead: Roller
|
| Rope: 40' Synthetic, 5/32" diameter (12.2m, 4mm diam.)
|
| Recommended Battery: 12 Amp/hour minimum
|
| Battery Leads: 10 gauge
|
| Duty Cycle: Intermittent
|
| Warranty: Limited Lifetime
|
| Mounting Bolt Pattern: 3.0" x 4.88" (76 x 124mm)
|
| Winch Dimensions: 10.3" L x 4.0" D x 4.56" H (26cm L x 10cm D x 11.6cm H)
|
|
| PERFORMANCE DATA
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
15 (4.6)
|
6
|
1/1500 (680)
|
| 500 (227)
|
11 (3.3)
|
27
|
2/1320 (599)
|
| 1000 (455)
|
7 (2.1)
|
44
|
3/1162 (527)
|
| 1500 (680)
|
5 (2.1)
|
65
|
4/1020 (463)
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
|
List Price: $186.61
Your Price: $131.21
In Stock Now!!!
| |
