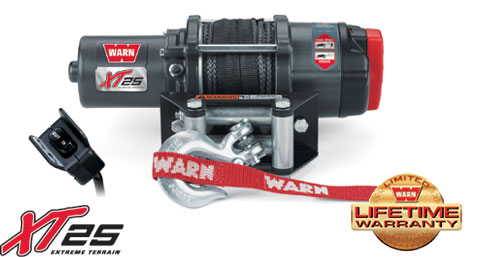

Warn XT 25
|
List Price: $521.60
Your Price: $366.75
Item Number: 75500
Manufacturer: Warn
Manufacturer Part No: 75500
|
PUSH THE LIMITS AND RIDE WITH CONFIDENCE USING THIS VERSATILE WINCH
You can hit the trail with confidence when you've got the premium XT25. Its lightweight, easy-to-handle synthetic rope is great for pulling an ATV out of a sticky situation, and the rope's flexibility is perfect for plow lifting. Its fast line speed means you'll be out of trouble and back on the trail in a hurry. There's no reason to worry about rollback either, thanks to our patent-pending disc brake. Full sealing protects the XT25 from the elements, and its dependable all-metal 3-stage planetary geartrain and efficient electrical system provide long, powerful pulls with less battery drain.
|
| XT25 SPECS/PART NUMBERS
|
| Part Number: 75500
|
| Rated Line Pull: 2500 lbs. (1134 kgs)
|
| Motor: 12V DC, .9 hp (.7 kW) permanent magnet, Sealed
|
| Control: Sealed handlebar-mounted mini-rocker switch
|
| Geartrain: All-metal 3-stage planetary
|
| Gear Ratio: 154:1
|
| Clutch (freespooling): Sliding pin and ring gear
|
| Brake: patent-pending disc brake
|
| Rope: 50' Synthetic, 3/16" diameter (15 m, 4.76mm diam.)
|
| Drum Diameter/Length: 2.0"/2.9" (52mm / 74mm)
|
| Fairlead: Roller
|
| Recommended Battery: 12 Amp/hour minimum
|
| Battery Leads: 8 gauge
|
| Duty Cycle: Intermittent
|
| Warranty: Limited Lifetime
|
| Mounting Bolt Pattern: 3.0" x 4.88" (76 x 124mm)
|

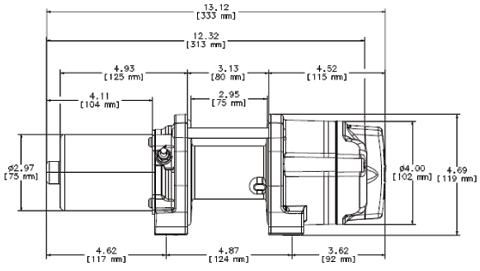

| Winch Dimensions: 13.12" L x 4.51" D x 4.69" H (33.3cm L x 11.5cm D x 11.9cm H)
|
|
| PERFORMANCE DATA
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
18 (5.5)
|
14
|
1/2500 (1134)
|
| 500 (227)
|
16 (4.9)
|
39
|
2/2150 (975)
|
| 1500 (680)
|
10 (3.0)
|
96
|
3/1845 (836)
|
| 2500 (1134)
|
5 (1.5)
|
157
|
4/1586 (719)
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
XT25 Specs & Performance Data
Operator's Manual
Winching Techniques
(English, Français, Español)
Winching Techniques
(Deutsch, Svenska, Italiano, Suomi) |
