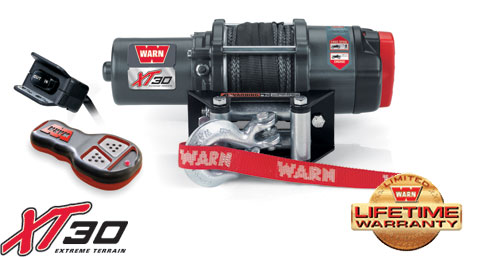

Warn XT 30
|
List Price: $745.60
Your Price: $524.25
Item Number: 76500
Manufacturer: Warn
Manufacturer Part No: 76500
|
Click Here for a Warn Winch Rebate of up to $70.00
TACKLE THE TRAIL WITH THE ULTIMATE ATV WINCH FOR THE MOST DEMANDING RIDER
When you want the top-of-the-line ATV winch, you'll want the XT30. With features like our patent-pending Wireless Control System and 3,000 lb. line capacity, you'll be able to pull the biggest ATVs out of the muck from anywhere within a 50' radius. When your vehicle gets stuck, you'll be glad you have the XT30's lightweight, easy-to-handle synthetic rope, which is also great for plow lifting. Full sealing will keep the elements out and an all-metal 3-stage planetary geartrain will keep the winch running smoothly for years. And When the hills get steep, the winch's confidence-inspiring, patent-pending disc brake will hold you securely so you don't roll back.
|
| XT30 SPECS/PART NUMBERS
|
| Part Number: 76500
|
| Rated Line Pull: 3000 lbs (1360 kgs)
|
| Motor: 12V DC, .9 hp (.7 kW) permanent magnet, Sealed
|
| Controls: Wireless control system and sealed handlebar-mounted mini-rocker control switch
|
| Geartrain: All-metal 3-stage planetary
|
| Gear Ratio: 154:1
|
| Clutch (freespooling): Sliding pin and ring gear
|
| Brake: patent-pending disc brake
|
| Drum Diameter/Length: 2.0"/2.9" (52mm / 74mm)
|
| Fairlead: Roller
|
| Rope: 50' Synthetic, 3/16" diameter (15 m, 4.76mm diam.)
|
| Recommended Battery: 12 Amp/hour minimum
|
| Battery Leads: 6 gauge
|
| Duty Cyle: Intermittent
|
| Warranty: Limited Lifetime
|
| Mounting Bolt Pattern: 3.0" x 4.88" (76 x 124mm)
|

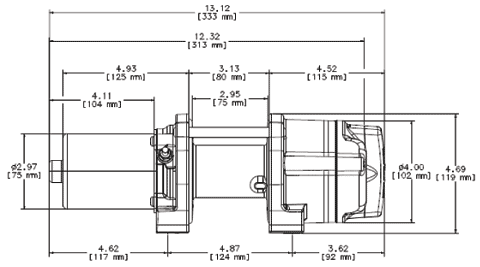

| Winch Dimensions: 13.12" L x 4.51" D x 4.69" H (33.3cm L x 11.5cm D x 11.9cm H)
|
|
| PERFORMANCE DATA
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0
|
18 (5.5)
|
14
|
1/3000 (1360)
|
| 1000 (455)
|
13 (4.0)
|
67
|
2/2580 (1170)
|
| 2000 (907)
|
8 (2.4)
|
125
|
3/2220 (1007)
|
| 3000 (1360)
|
4 (1.2)
|
198
|
4/1910 (866)
|
|
|
|
| Above performance specs are based on first layer of drum
|
|
