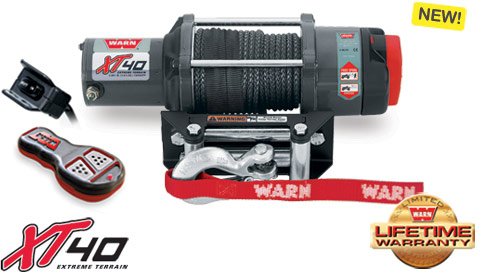

Warn XT 40
|
List Price: $916.27
Your Price: $644.25
Item Number: 77500
Manufacturer: Warn
Manufacturer Part No: 77500
|
| XT40 SPECS/PART NUMBERS
|
| Part Number: 77500
|
| Rated Line Pull: 4000 lbs (1814 kgs)
|
| Motor: 12V DC, 1.5 hp (1.1 kW) Permanent Magnet
|
| Controls: Wireless Remote and Universal Mount Mini Rocker
|
| Gear train: 3-Stage Planetary
|
| Gear Ratio: 136:1
|
| Clutch (Freespool): Sliding Pin and Ring Gear
|
| Brake: Roller Disk
|
| Drum diameter/length: 2.25"/4.7" (57mm/119mm)
|
| Kit Shipping Weight: 31.4 lbs (14.2 kgs)
|
| Rope: Synthetic, Ø 7/32" x 50' (Ø 5.5mm x 15.2m)
|
| Fairlead: Roller
|
| Recommended Battery: 500 CCA minimum
|
| Duty Cycle: Intermittent
|
| Battery Leads: 6 gauge
|
| Finish: Steel Grey Powder Coat
|
| Warranty: Limited Lifetime (valid in USA and Canada only)
|
| Mounting Bolt Pattern: 3.0" x 6.66" (76mm x 169mm)
|
| Winch Dimensions: 14.42" L x 4.51" D x 4.69" H (36.6cm L x 11.5cm D x 11.9cm H)
|
|
| PERFORMANCE DATA
|
Line Pull
Lbs.(Kgs.)
|
Line Speed
FT./min(M/min.)
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 4000 (1814)
|
4.6 (1.4)
|
314
|
1/4000 (1814)
|
| 3000(1360)
|
7.9 (2.4)
|
232
|
2/3320 (1506)
|
| 2000 (907)
|
12.7 (3.9)
|
157
|
3/2855 (1295)
|
| 1000 (454)
|
18.6 (5.7)
|
88
|
4/2512 (1140)
|
| 0
|
25 (7.6)
|
21
|
|
|
|
|
|
|
| DUTY CYCLES
|
|
|
|
| Load lbs (kgs)
|
Run Time
|
Distance ft. (m)
|
Cool Time (min)
|
| 0
|
2.5 min
|
55 (16.8)
|
12
|
| 500 (227)
|
2.0 min
|
45 (13.7)
|
10
|
| 1000 (455)
|
1.5 min
|
27 (8.2)
|
10
|
| 2000 (907)
|
45 sec
|
10 (3.0)
|
10
|
| 3000 (1360)
|
30 sec
|
4 (1.2)
|
10
|
| 4000 (1814)
|
10 sec
|
1 (0.3)
|
10
|
|
|
|
| Above performance specs are based on first layer of drum
|
|

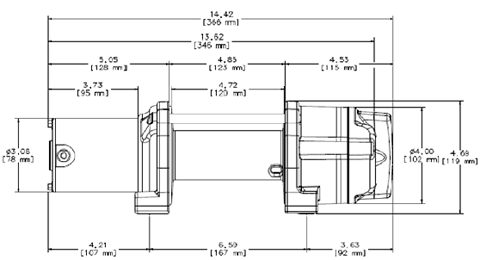

| Winch Dimensions: 14.42" L x 4.51" D x 4.69" H (36.6cm L x 11.5cm D x 11.9cm H)
|
