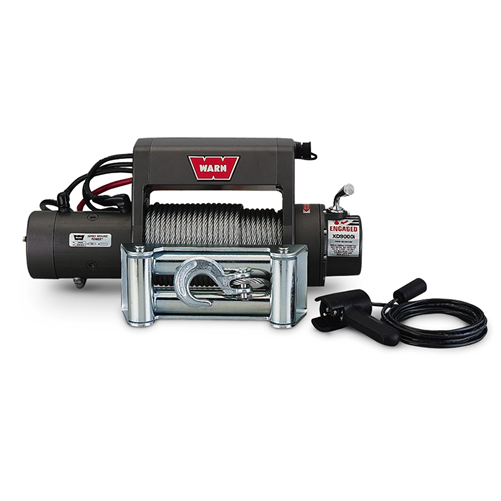

XD9000i Winch, 12V, 125', Roller Fairlead

XD9000i SELF-RECOVERY WINCH
You'll probably see more XD9000i winches on trail rigs than any other winch. No load line speed of 38-feet per minute and three-stage planetary gearing are just a few reasons why. It's also a terrific fit in a hidden mounting system.

XD9000i SPECS/PART NUMBERS:

Part Numbers: PN 27550 (12V DC), PN 275502 (12V DC, CE), PN 274022 (24V DC, CE)

Rated line pull: 9000 lbs. (4080 kgs.) single-line

Motor: 12V 4.6 hp, Series Wound, 24V 2.5 hp, Series Wound

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-Stage Planetary

Gear ratio: 156:1

Lubrication: Aeroshell #17

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic Direct Drive Cone

Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 85 lbs. (38.5 kgs.)

Wire rope: 125', 5/16" diameter (38m, 8mm diameter)

Replacement wire rope: PN 25987, PN 38312 (CE)

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finish: Argent Powder Coat Nuts/bolts PN 39625

CE winches: CE products are designed to meet European Standards. CE winches include CE labels, Manuals, Power Interrupt Kit, Safety Hook and Thimble.

12V DC PERFORMANCE SPECS:

Above performance specs are based on first layer of drum

Winch Dimensions: 21.8" L. x 6.3" D. x 9.94" H.
(553mm L. x 160mm D. x 252mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
