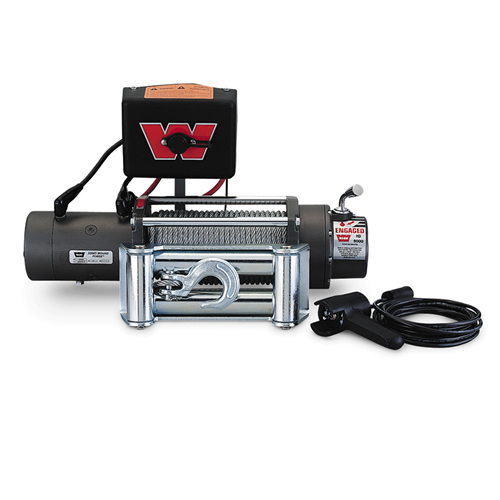

XD9000 Winch, 12V, 100', Roller Fairlead

XD9000 SELF-RECOVERY WINCH
A long-time best seller, the XD9000's compact body and separate control pack lets it work effectively in very tight spaces. It uses the 4.6 hp Series Wound motor and three-stage planetary gearing offered on most of our winches, so torque and line speed are outstanding. A quiet, double-durable winch, pure and simple.

XD9000 SPECS/PART NUMBERS:

Part Numbers: PN 28500 (12V DC), PN 285002 (12V DC, CE),
PN 265012 (24V DC, CE)

Rated line pull: 9000 lbs. (4080 kgs.) single-line

Motor: 12V 4.6 hp, 24V 2.5 hp Series WoundTM

Remote Control: Remote switch, 12' (3.7m) lead

Gear train: 3-Stage Planetary

Gear ratio: 156:1

Lubrication: Aeroshell #17

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic Direct Drive Cone

Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 78 lbs. (35 kgs.)

Wire rope: 100', 5/16"diameter (30m, 8mm diameter)

Replacement wire rope: PN 27110, PN 38314 (CE)

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finish: Argent Powder Coat

Nuts/bolts: PN 39625

CE winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, power interrupt kit, roller fairlead, safety hook and thimble.

12V DC PERFORMANCE SPECS:

Above performance specs are based on first layer of drum

Winch Dimensions: 21.8" L. x 6.3" D. x 7.6" H.
(555mm L. x 160mm D. x 193mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
