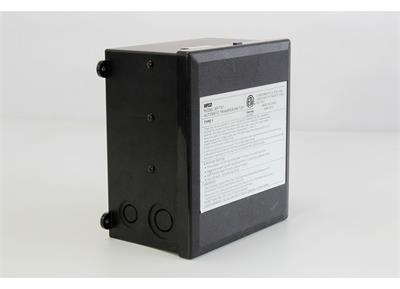

WFCO/Arterra 57-R 50 amp Automatic Transfer Switch
Plastic Automatic Transfer 50 AMP
$186.38
Item Description
The WFCO T-57 is designed to provide trouble-free changeover of power between shore power and generator. The T-57 is used for a 30 Amp or 50 Amp AC service. The T-57 mounts easily onto a flat surface and is engineered for safe, reliable performance. The unit’s DC coiled relays prevent AC “chatter” noise and drop-out in low-voltage conditions. Accidental coupling of power to or from the shore line and generator is prevented by a “break before make” configuration.
- DC Coiled Relays Prevent AC “chatter” Noise And Drop-Out In Low-Voltage Conditions
- Output Current: 50 Amps AC
- Input Voltage: 120/240 VAC, 60 Hz
- Knockout Holes: 10
- Knockout Sizes: 4 x 1/2", 4 x 3/4", 1 x 3/4", & 1-1/4 Concentric
- Outer dimensions: 8-1/4"W x 9-1/4"H x 5"D
- Weight: 5 lbs.
- Certifications: Certified to CSA STD. C22.2, Conforms to UL STD. 1008, EL Listed, FCC Class B Compliant
- Specifications are Subject to Change Without Notice or Obligation
|
|
