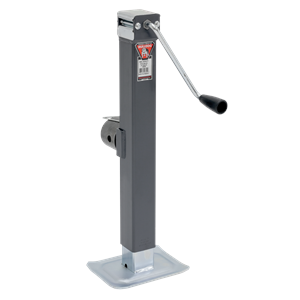

Bulldog 190756 Square Sidewind Jack Male Swivel 5k Lift 8k Static 15" Travel
Reese / Tow Ready / Draw Tite
More on order, due in soon
Item Description
SWL 190 FL-BTSMQ w/P&C, 8,000 lbs. Support Cap., 15" Travel, Fixed Leg, w/Male Mount
BULLDOG's 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4" square tube jacks are too big!
- Use the painted outer tube as the final finish or primer
- Zinc-plated inner tube and drop leg
- 4.7" Outer / inner tube overlap - results in optimal side load performance
- 5/8" screw stem - provides insurance against screw stem twisting off
- Patented screw nut stop - prevents screw and/or nut damage when jack is fully extended
- Topwind models - bushing in top cap, eagle claw grip
- Sidewind models - 1/4" cross pin connects gear train to screw stem - guards against shearing jack pin
- Sidewind models - 1:1.33 gear ratio
|
|
