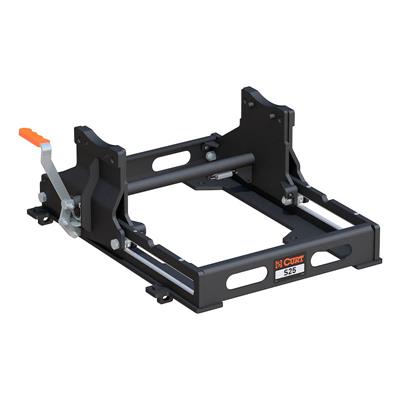

CURT 16574 S25 5th Wheel Slider Base 12" Travel 25k

Item Description

The S25™ slider boasts a quiet, solid design to provide a more comfortable and enjoyable 5th wheel towing experience. It offers reliable strength, anchoring to any industry-standard 5th wheel rails and accepting a variety of CURT 5th wheel heads.

The S25™ features smooth sliding operation, displacing the 5th wheel coupling point 12" toward the rear for unobstructed turning with a short-bed truck. It also features an auto-latching mechanism that eliminates the need to exit the truck multiple times during hookup. The lever is easy and comfortable to operate, featuring a more user-friendly design compared to traditional 5th wheel sliders.

This CURT sliding 5th wheel hitch comes fully assembled for ready installation (hitch head and rails sold separately).

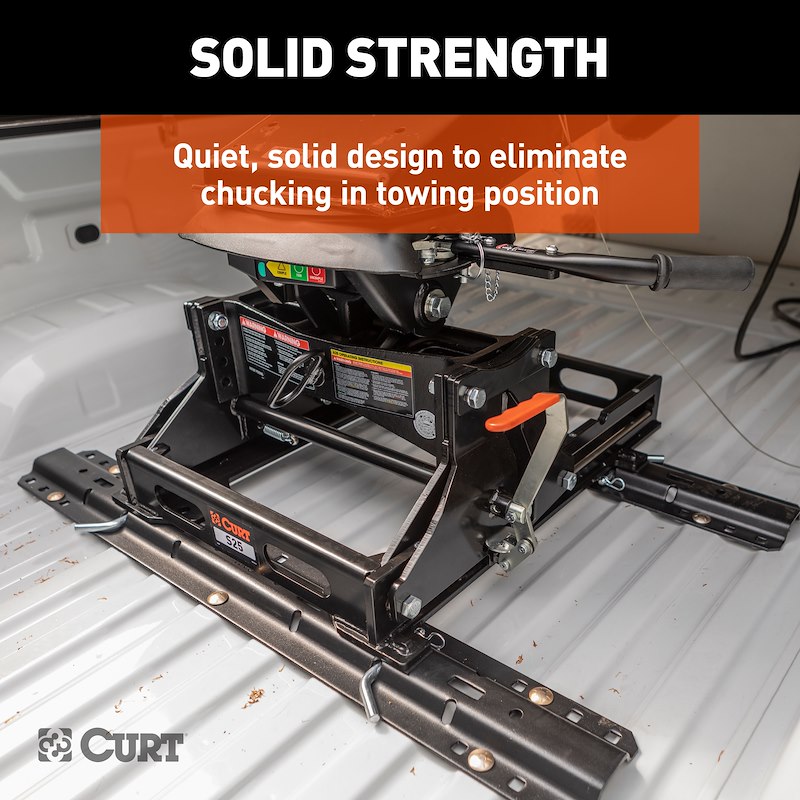

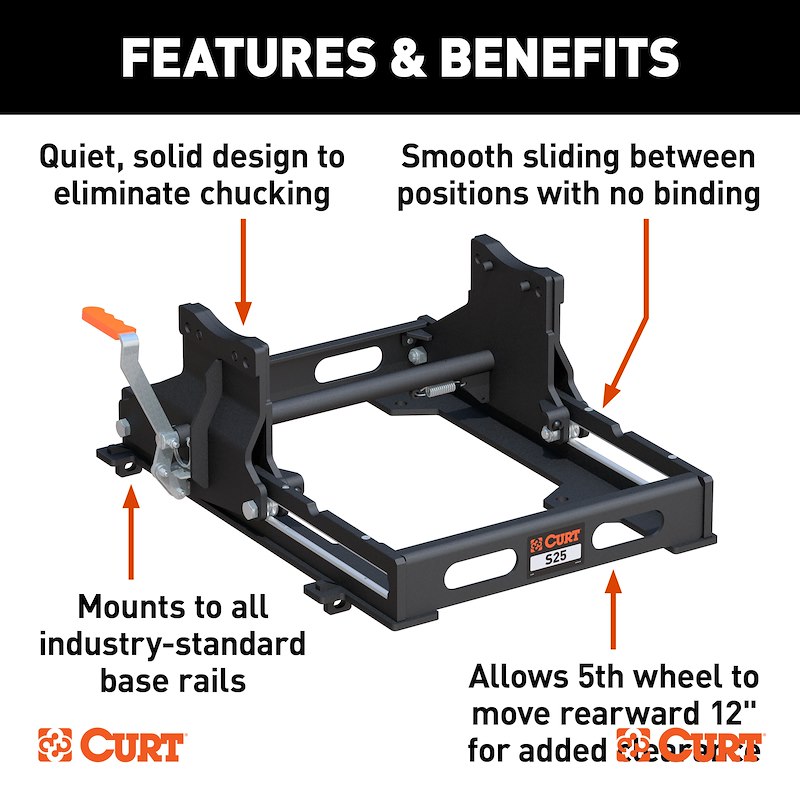

Quiet, solid design to eliminate chucking in towing position

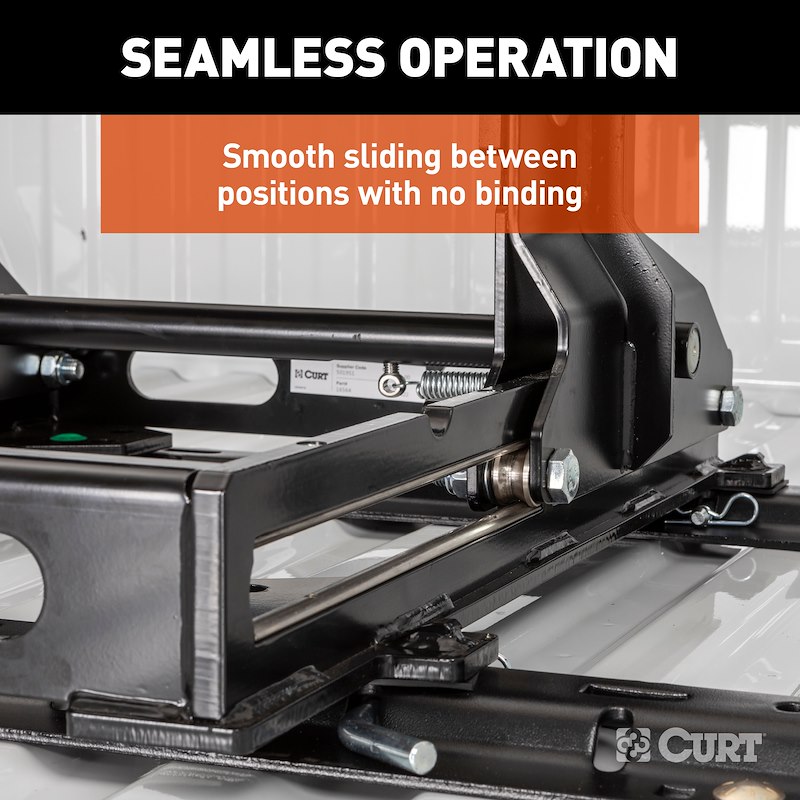

Smooth sliding between positions with no binding

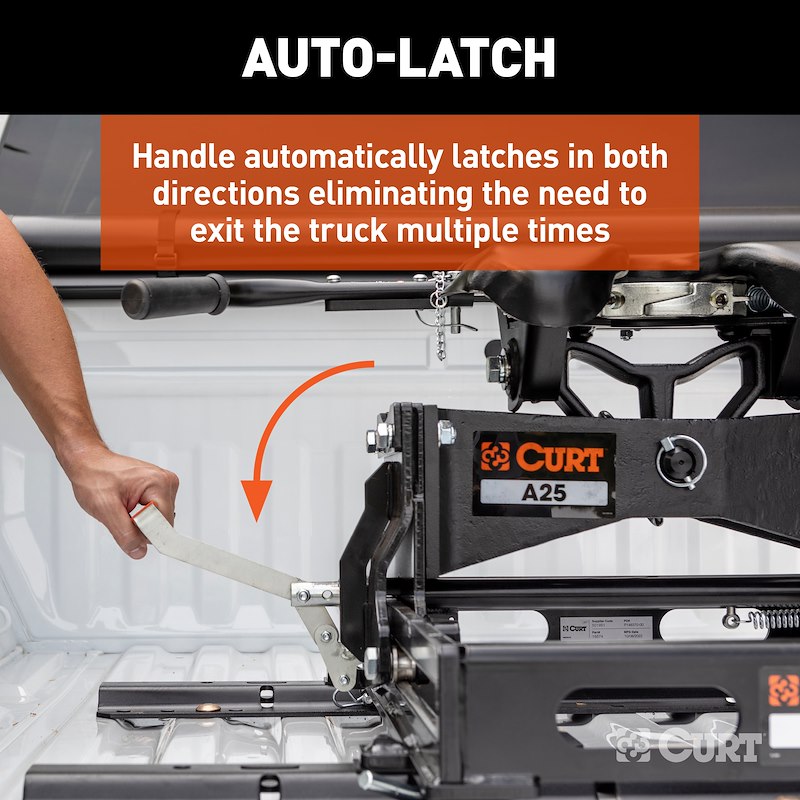

Automatically latches in both directions so you only have to exit the truck once
Easy-to-reach lever arm for ergonomic operation
Lever lift motion for user-friendly functionality vs. traditional pull-out style

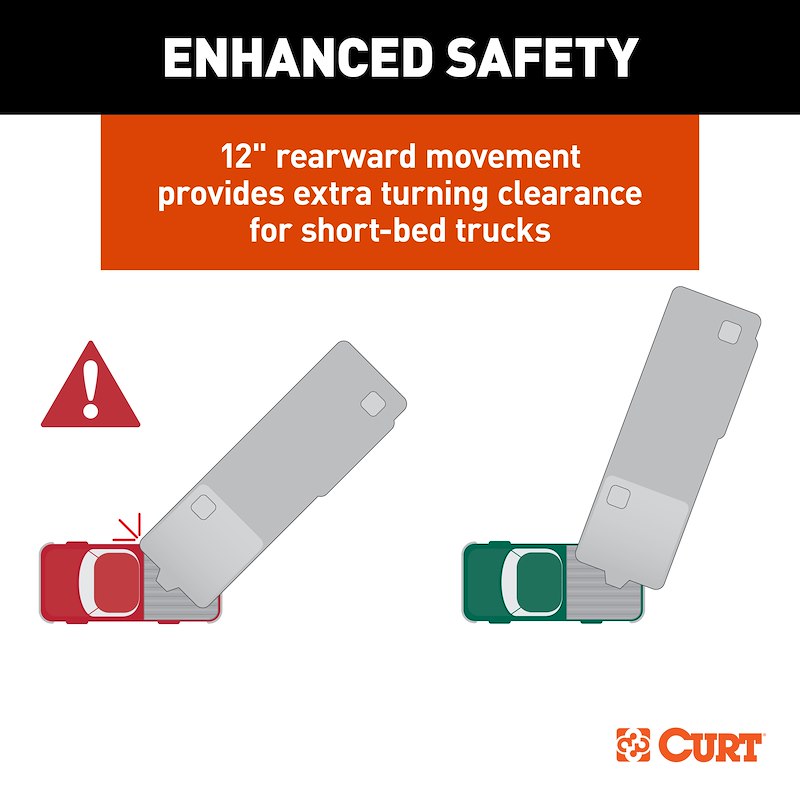

12" rearward movement provides extra turning clearance for short-bed trucks

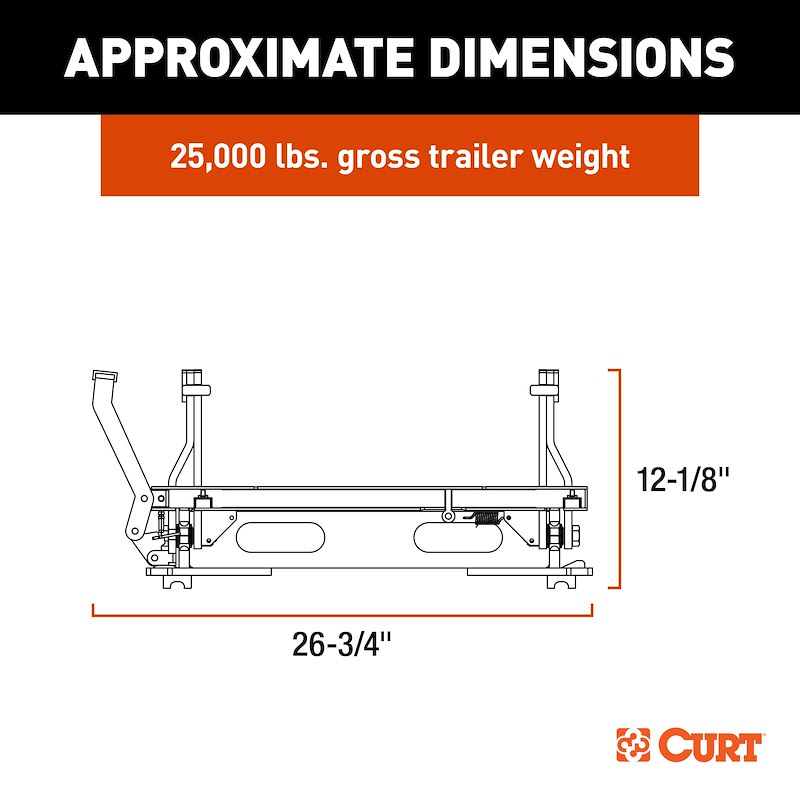

25,000-lb. rating tested for safety in accordance with SAE J2638
Mounts to all industry-standard rails and CURT puck system adapters
Protected by a highly durable carbide powder coat finish

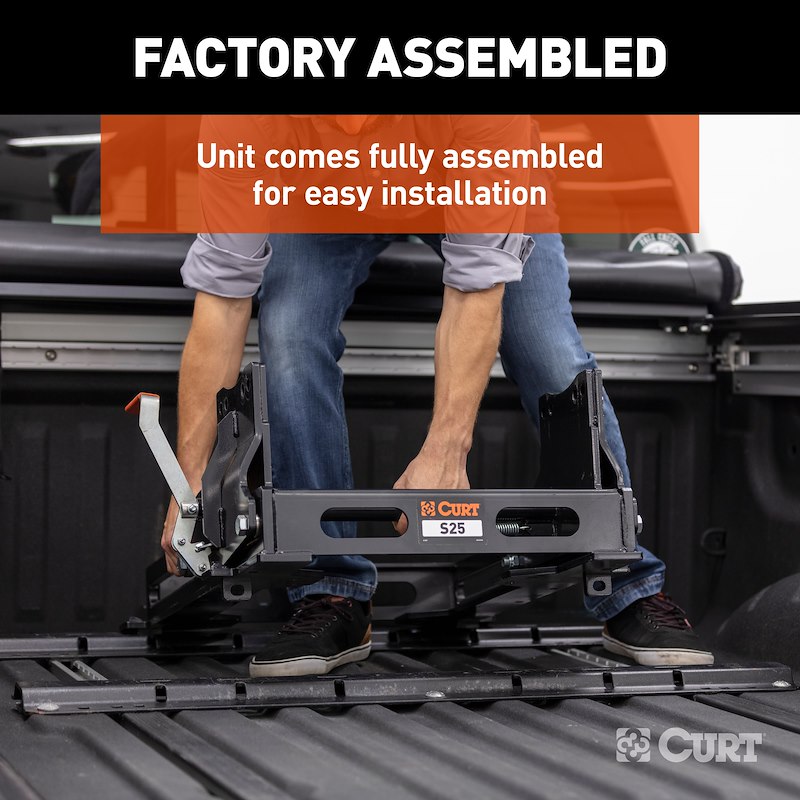

Unit comes fully assembled for easy installation
Limited lifetime warranty (one-year finish, one-year parts)
Includes slider unit only
Not compatible with X5 adapters
