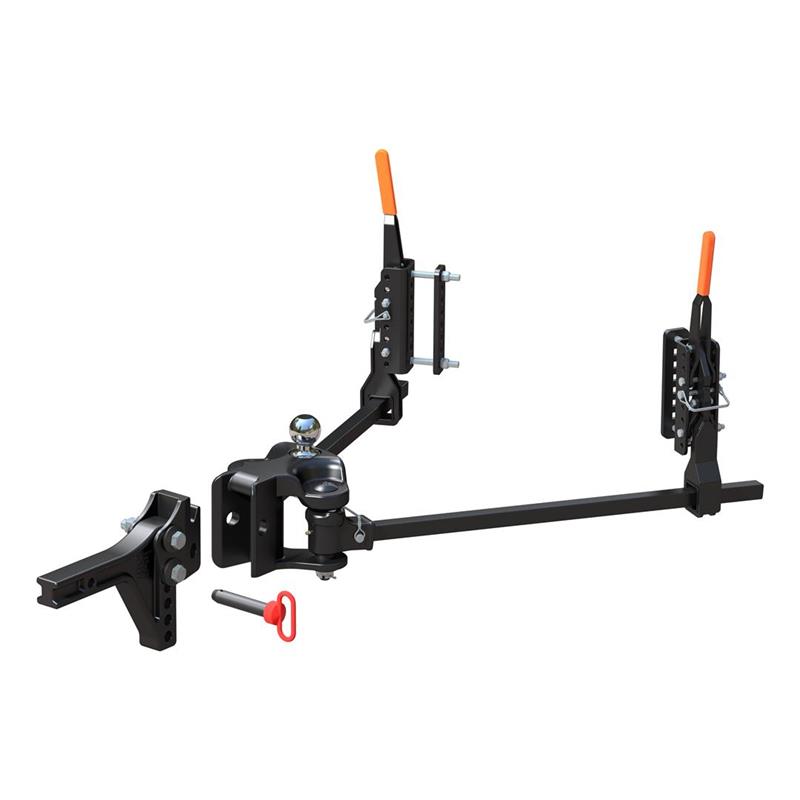

Curt 17520 TruTrack 4P Trailer-Mounted Weight Distribution Hitch 8-10K

Item Description

The CURT TruTrack weight distribution hitch is easy to couple and doesn't require adjusting the spring bars after initial setup. Traditional WD hitches require the spring bars to be connected and disconnected each time the trailer and tow vehicle are hitched or unhitched. This means the TruTrack can be quickly coupled and uncoupled without resetting the spring bars, making the coupling process a breeze. Simply set up the TruTrack and then couple or uncouple your trailer using the quick-connect hitch when you need to separate the trailer and tow vehicle.

The TruTrack features the same trusted and reliable technology that all TruTrack products are known for. The WD system helps to distribute weight evenly across the coupling point by using spring bars that distribute the weight of the trailer across all axles and keep the trailer and tow vehicle more level to the ground. The spring bars and head provide four points of control to actively prevent the trailer from swaying and the hitch from sagging, promoting a safe and steady tow. The TruTrack provides a convenient coupling process and reliable control that promotes a sway-free towing experience when moving at higher speeds. It comes with a durable carbide black powder coat finish for long-lasting corrosion resistance
 TruTrack; Trunnion; Fits 2 Inch Receiver; 1000 Pound Tongue Weight/ 10000 Pound Gross Trailer Weight 4 Point System With Intergrated Sway Control With Ball

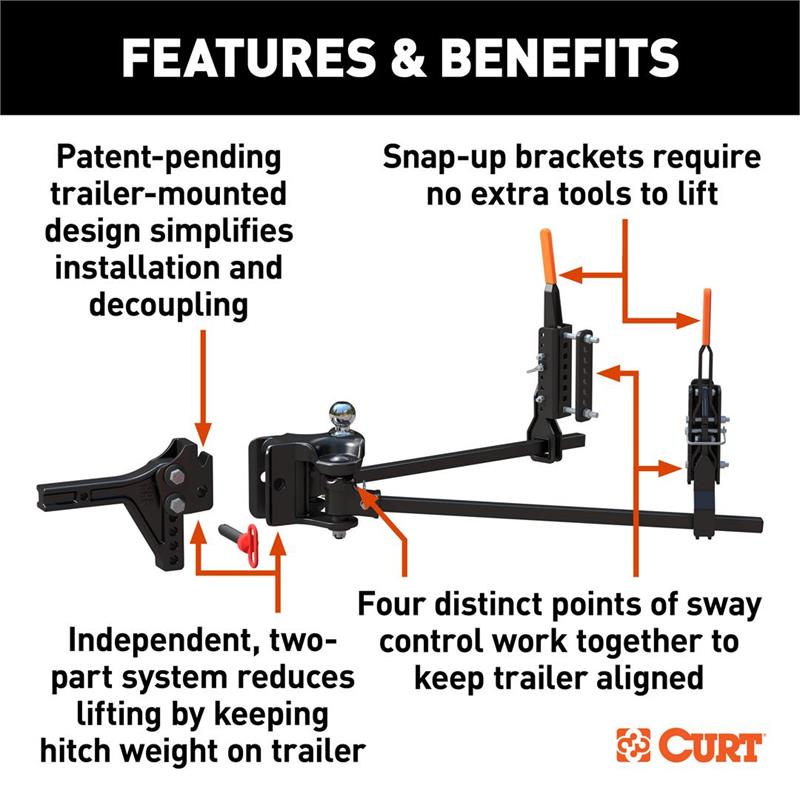

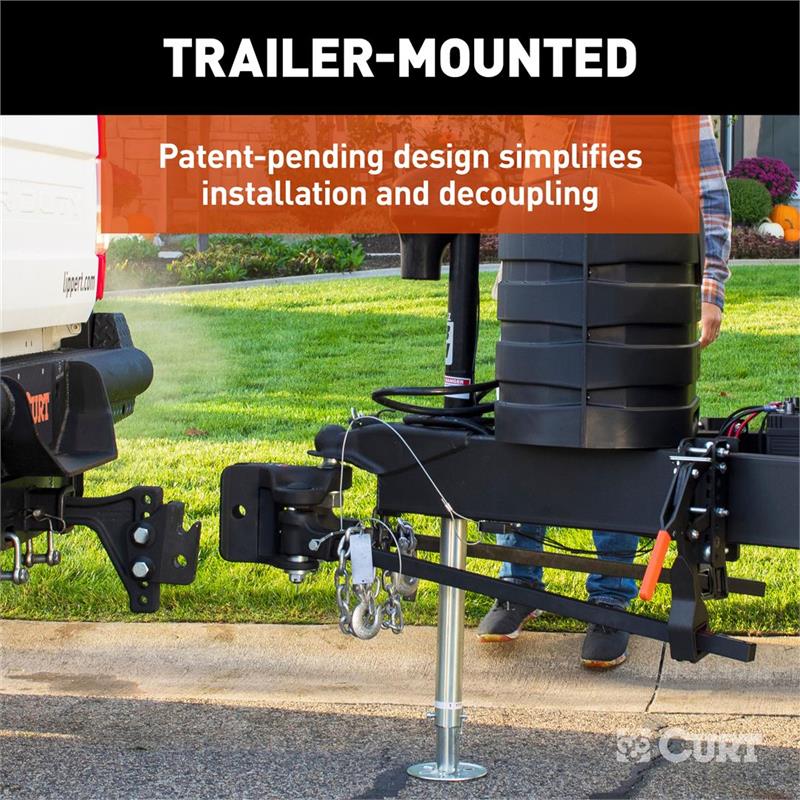

• Patent-pending trailer-mounted design simplifies installation and decoupling
• Independent, two-part system eases lifting by keeping hitch weight on trailer

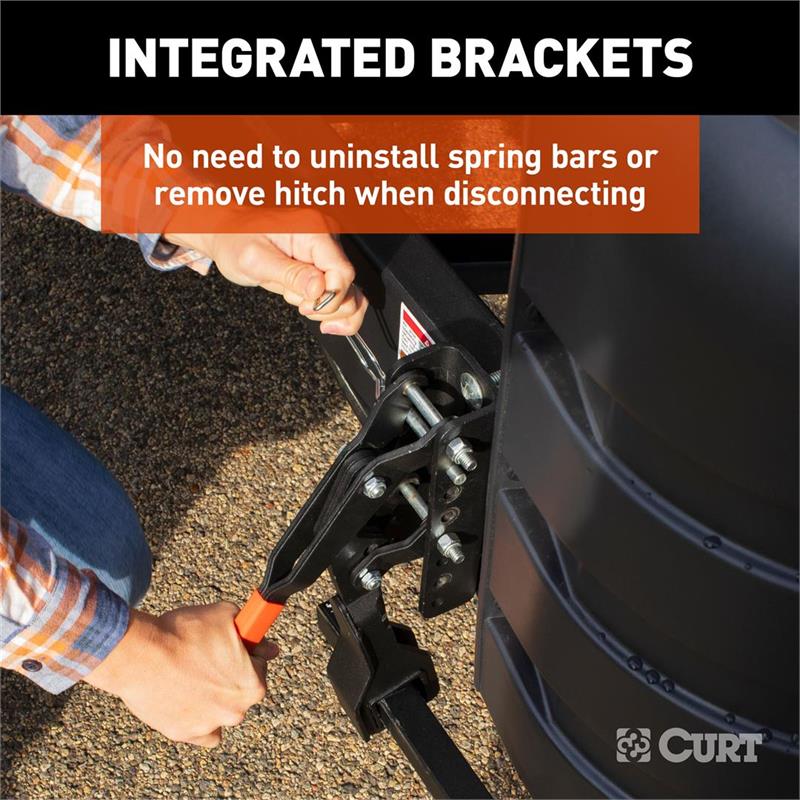

• Prevents need to uninstall spring bars or remove hitch when disconnecting
• Innovative horn cradles the trailer head, providing effortless coupling
• Unique snap-up brackets mount spring bars with no extra tools needed to lift
• Integrated sway control actively resists sway and levels the vehicle and trailer
• Four points of sway control work together to keep trailer aligned
• Brackets use friction to resist lateral movement and distribute weight evenly
• Adjustable brackets provide fixed support unlike spring bar chain models
• Head tilt adjustment feature simplifies setup and eliminates need for washers
• Equipped with durable, forged steel spring bars for reliable strength
• Heavy-duty, fabricated head can be used for precise leveling
• Up to 10,000 lbs. GTW / 1,000 lbs. TW
• Protected by a durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

Notes:

• Capacity limited to lowest rated towing component
• Bracket kit with hardware sold separately
