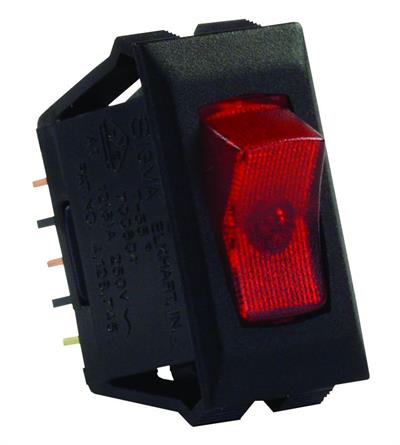

JR Products 12525 12V On/Off Switch Red/Black
UPC: 756815125253 Prop65: WARNING: This product contains chemicals known to the State of California to cause both Cancer and Reproductive Harm.
Item Description
Multi Purpose Switch; 12 Volt; 16 Amp At 125 Volt AC/ 12 Amp At 250 Volt AC/ 3/4 Horsepower At 125 To 250 Volt AC/ 10 Amp At 14 Volt DC; Single Switch; Single Pole Single Throw (SPST); Rocker; 1.125 Inch x 0.550 Inch Cutout; 1.120 Inch x 0.547 Inch (Switch); Red Illuminated Light; Black
Illuminates When Switch Is In The On Position Made For A Number Of Uses Inside The RV And Out High Quality For A Long Usable Life UL/CSA/VDE/RoHS Approved Limited Lifetime Warranty
- Design: Rocker
- Voltage: 14/ 125/ 250 Volt
- Current Rating: 10/ 12/ 16 Amp
- Marine: No
- Operation: Single Pole Single Throw
- Number Of Switch Positions: 2
- Connector Gender: Male
- Terminal Type: Blade
- Number Of Terminals: 3
- Color: Black
|
|
