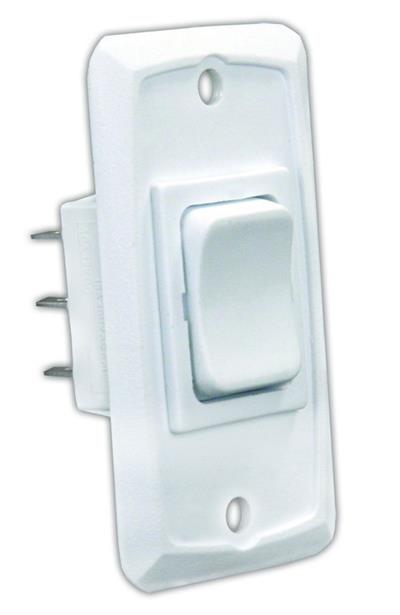

Momentary On/Off/Momentary On Switch, White, 1/Clamshell
UPC: 756815128353 Prop65: WARNING: This product contains chemicals known to the State of California to cause both Cancer and Reproductive Harm.
Item Description
Heavy duty double pole switches are used in many slide-out and multiple operations panels. Rated to withstand higher temperatures and heavy use. 13A @ 125 VAC, 10AP @ 250 VAC, 1/2 HP, 5A @14 VDC. When used as a reversing motor switch it has tested to operate at a continuous basis (25,000 cycles) with a 25A load @ 14 VDC. UL/CSA/VDE approved. Cut out: 1.071 x .875. Switch: 1.06 x .866.
|
|
