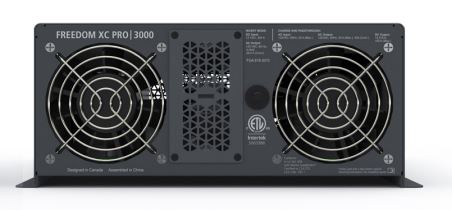

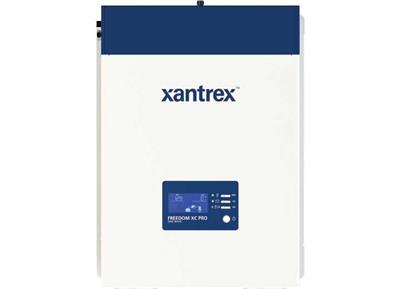

Xantrex 818-3010 Freedom XC Pro Power Inverter

Inverts 12V DC To 120V AC - 3000W Continuous - 6000W Surge True Sine Wave - 25A Continuous Output - 91 Percent Peak Efficiency - 84 Percent Full Load Efficiency - 15.4" Length x 10.8" Width x 4.9" Height w/o Flanges
Part Number
N55-0186
Manufacturer
Xantrex
MFG. Part No
818-3010
Your Price:
$2,151.92 free shipping

Item Description

The Freedom XC inverter or charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4 Degree Fahrenheit to 104 Degree Fahrenheit for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN or OUT make installation a breeze.

Input Voltage: 12 Volt DC
Output Voltage: 120 Volt AC
Continuous Output Power (W): 3000 Watt
Peak Output Power (W): 6000 Watt
Ampere Rating: 25 Amp
Efficiency: 84 To 91 Percent
Length (IN): 15.4 Inch
Width (IN): 10.8 Inch
Height (IN): 4.9 Inch
Remote On/Off Capable: Yes
With USB Port: No
With Volt/Watt Meter: Yes
With Built-In Charger: Yes

  • Extended Surge Rating: Surges To 2X Continuous Power For 2 Seconds For Motor Loads
  • True Sine Wave AC Power For Operation Of Sensitive And Motor Loads
  • Ignition Control To Turn Inverter On Or Off Via A 12 Volt DC Signal And To Minimize Battery Drain By Switching The Inverter Off When The Ignition Key Is Turned Off
  • Wide 10 To 18 Volt DC Input Rang Ensures Inverter Operation On High Voltage Alternators Found On Many New Vehicle Chassis
  • Programmable AC Under-Voltage (85 To 110 Volt AC) Shutdown Is Ideal To Operate Under Weak Shore Power Or Generator Input
  • Built-In 30 Ampere AC Transfer Relay Senses When Outside AC Power Is Present And Transfers The Load From The Inverter To The Source Of Incoming Power
  • View AC And Battery Current, Percent Status Bar For Inverter Output On The Onboard Display
  • Hardwire Or Plug Directly Into The Optional 20 Ampere GFCI Receptacle

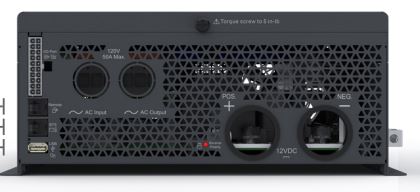

  • Easy Access AC And DC Wiring Compartment For Quick Installation
  • Limited 2 Year Warranty
