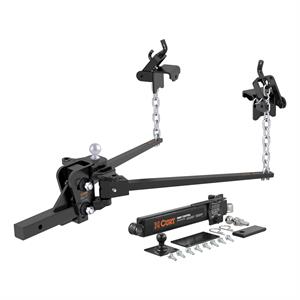

Curt 17322 Short Trunnion Bar Weight Distribution Hitch Kit 8K-10K 28-3/8" Bars

Item Description

CURT WD hitches come with a 2" x 2" shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2" replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicle's weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).

This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 10,000 lbs. and a tongue weight capacity of 1,000 lbs. It also includes hook-up brackets, spring bar safety chains, a trailer ball and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. For added sway control, this weight distribution hitch includes a sway control unit. While weight distribution hitches are an effective solution for stabilizing and leveling out your towing rig, they should not be considered a sway control. However, when combined with a CURT sway control kit, the WD hitch maximizes its effectiveness in controlling sway. The sway control kit includes a sway control unit, trailer balls to attach to the trailer and hitch, a reinforcement plate and attachment clips.

• Levels tow vehicle and trailer by redistributing a portion of the tongue weight
• Includes sway control kit #17200 to help reduce trailer sway

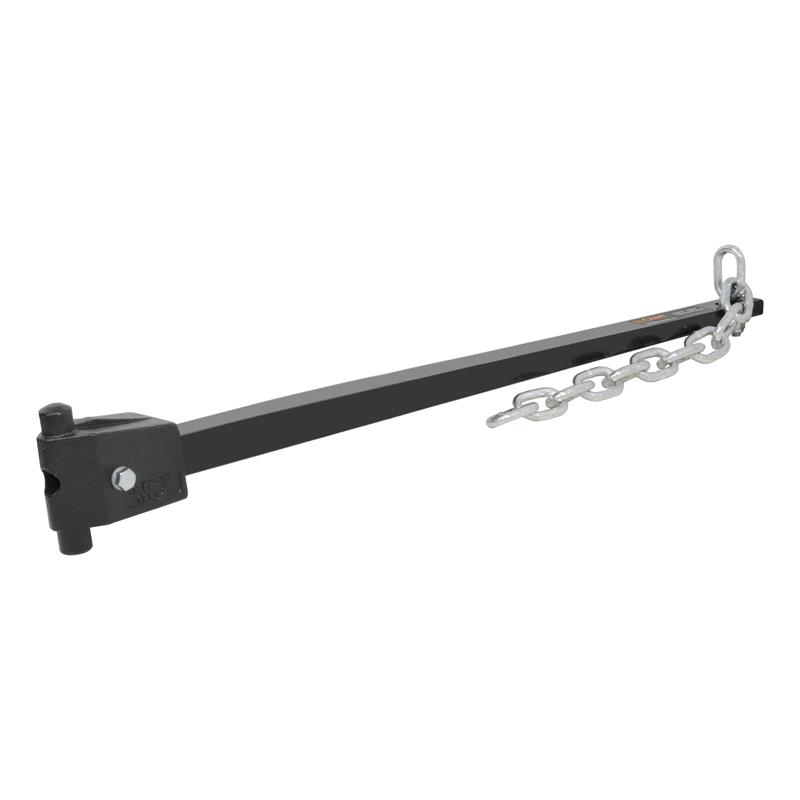

• Equipped with 28-3/8" trunnion-style, forged steel spring bars

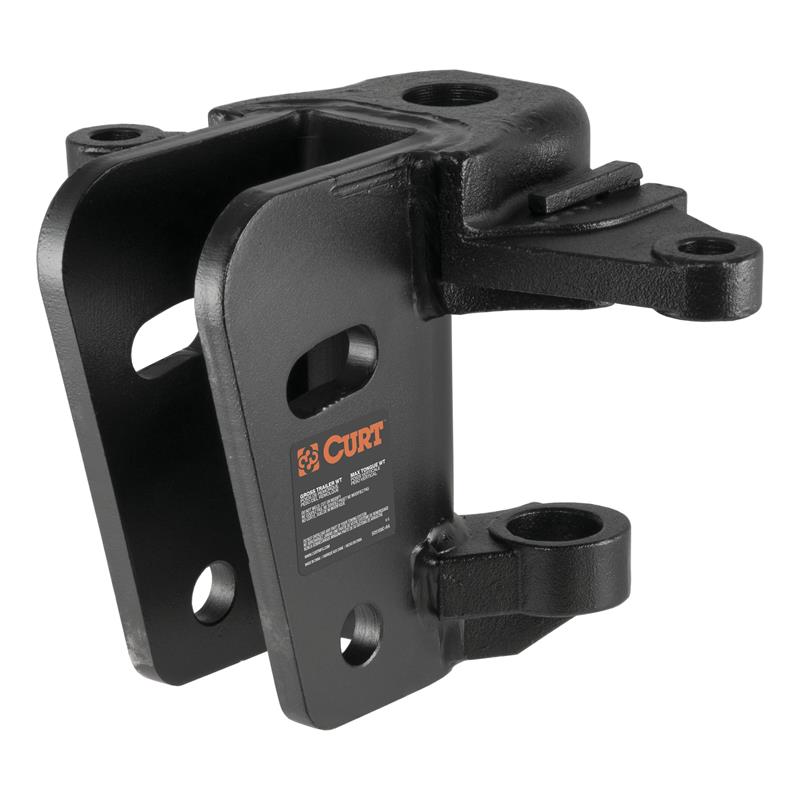

• Heavy-duty, formed head can be adjusted for precise leveling
• Sway control easily mounts on built-in sway control attachment tabs
• 2" shank can be flipped to provide necessary drop or rise
• 2-1/2" x 2-1/2" WD replacement shank also available

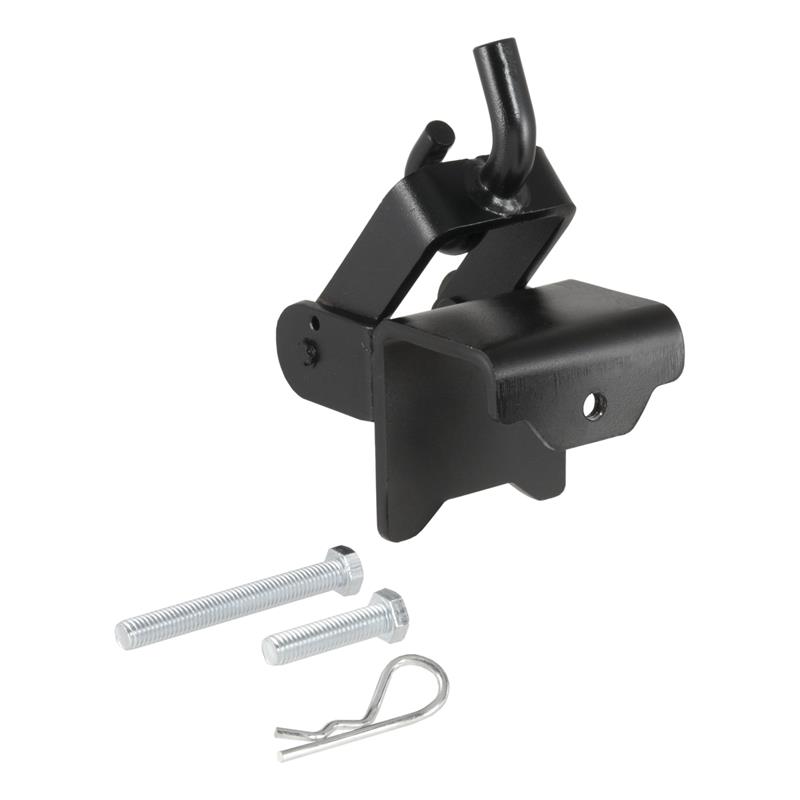

• Snap-up brackets and lift handle allow for easy leveraging of spring bars
• Protected by a highly durable carbide powder coat finish

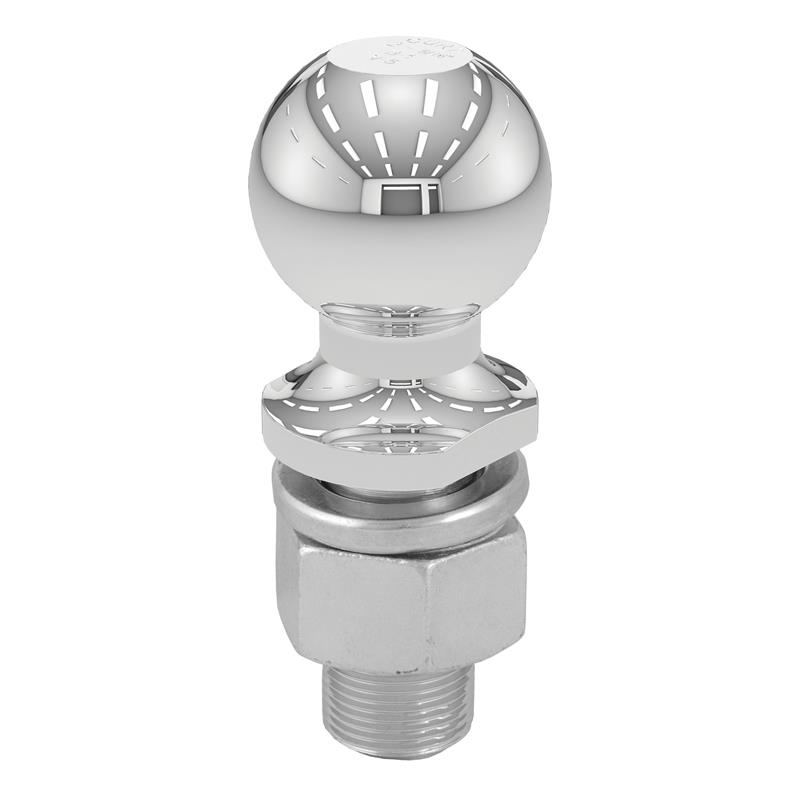

• Includes a pre-torqued 2-5/16" trailer ball
• Limited lifetime warranty (one-year finish, one-year parts)
