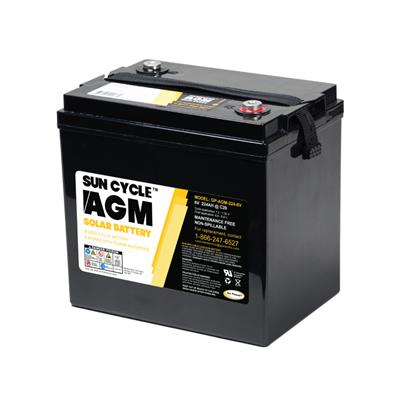

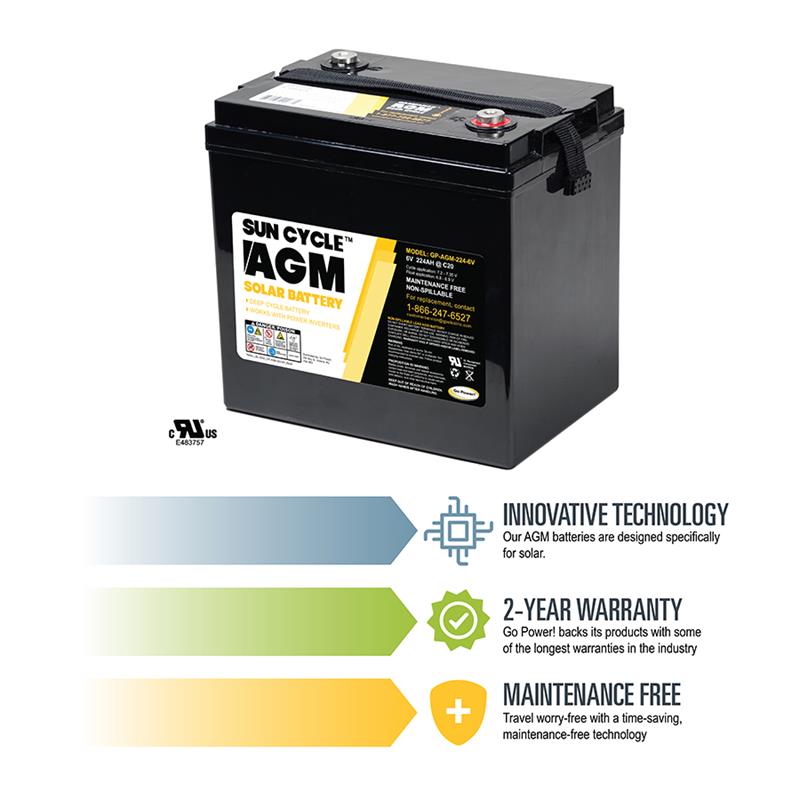

Go Power! GP-AGM-224-6V 6 Volt Sun Cycle AGM Deep Cycle Solar Battery

Item Description

The Go Power! Sun Cycle AGM Deep Cycle Solar Battery is ideal for solar applications and inverter systems. It is a lead sulfuric acid battery. The case and cover are made from ABS with an absorbent glass mat (AGM) separator. The rubber venting valve has an opening pressure of 8-20kPa. It has a maintenance-free, sealed construction with a nylon carrying strap. It is spill proof/leak proof (VRLA) and 100% recyclable. The battery can be stored for up to 6 months before a freshening charge is required. Batteries stored at temperatures greater than 77°F (25°C) will require a recharge sooner.

• Go Power! Sun Cycle AGM Solar Battery
• Go Power! Part #: GP-AGM-224-6V
• Designed for Solar & Inverter Use
• Technology: AGM, VRLA Deep Cycle Battery
• BCI Group # 27
• Nominal Voltage: 6 V
• Nominal Capacity: 224 Ah
• Rated Capacity: 224 Ah/11.2A(20hr,5.25V/cell); 194 Ah/19.4A (10hr,5.25V/cell); 179 Ah/35.9A (5hr,5.1V/cell)
• Nominal Operating Temperature: 77 ±5°F (25 ±3°C)
• Operating Temperature Range (Discharge, Storage): -4 ~ 140°F (-20 ~ 60°C)
• Operating Temperature Range (Charge): -4 ~ 122°F (-20 ~ 50°C)
• Capacity Correction for Temperature Variations: 104°F (40°C) - 103%; 77°F (25°C) - 100%; 32°F (0°C) - 85%
• Maximum Discharge Current: 2000 A (5s)
• Internal Resistance: Approx. 1.4 Mili-Ohms
• Terminals: T11 Brass Insert
• Cycle Use: Initial Charging Current Less than 30.0 A
• Cycle Use Voltage: 7.2V ~ 7.4 V at 77° F (25°)
• Standby Use: No Limit on Initial Charging Current
• Standby Use Voltage: 6.8 V ~ 6.9 V at 77°F (25°C)
• Cycle Life at 77°F (25°C): 100% Depth of Discharge ~ 250 Cycles; 50% Depth of Discharge ~ 1110 Cycles; 30% Depth of Discharge ~ 2250 Cycles
• Certifications: UL; CE; IEC60896-21 & 22
• Dimensions: 10.24"L x 7.09"W x 9.72"H (9.96"H Including Terminals)
• Weight: 67.25 lbs.
• Specifications Subject To Change Without Notice
• Specifications Subject to Local Environmental Conditions
