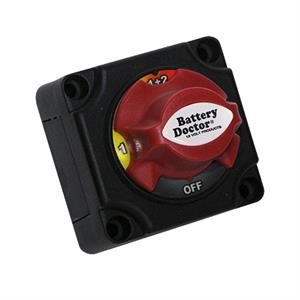

WirthCo 20393 4-Position Mini Master Dual Battery Disconnect Switch
UPC: 010054203937 Prop65: WARNING: This product contains chemicals known to the State of California to cause both Cancer and Reproductive Harm.
Item Description
4-Position Mini Master Dual Battery Disconnect Switch [20393] For use on a dual battery application.
- For Application Up to 48 Volts
- ISO 8846 Approved
- Continuous Rating: 300 Amps
- Intermittent Rating: 1000 Amps / 5 Seconds
- Crank Rating: 700 Amps / 10 Seconds
- Can Be Used with 1 or 2 Batteries
- Dimensions: 2-3/4" L x 2-3/4" W x 3" H
- Recess, Flush Top Mount
- Label Glows in the Dark
- Removable Back Plate
- Cable Knockout Plate on All Sides
- Four Removable Access Panels (One Per Side)
- 10mm Threaded Studs with Nuts
|
|
