Xantrex 817-2080 Freedom XC Power Inverter

Item Description

The Freedom XC inverter/charger cranks out full output in invert or charge mode from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze. The other industry leading features include dead battery charging, the ability to operate under weak shore or generator power and wide DC input voltage range  A true sine wave inverter with a built-in lithium-ion battery charger and transfer switch in a compact, lightweight footprint. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02) Sold Separately.

Input Voltage: 12 Volt DC
Output Voltage: 120 Volt AC
Continuous Output Power (W): 2000 Watt
Peak Output Power (W): 4000 Watt
Ampere Rating: 16.7 Amp
Efficiency: 91 Percent

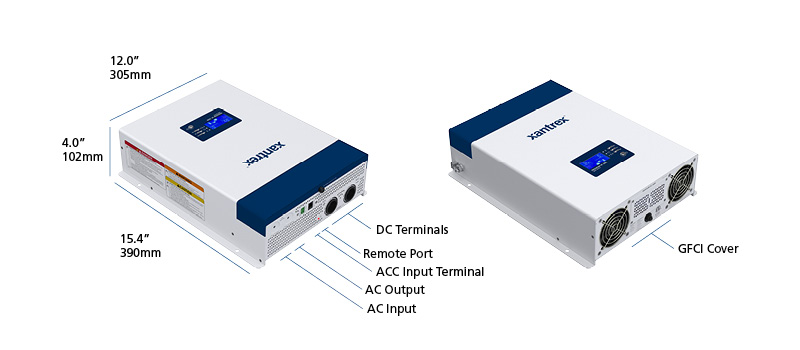

Length (IN): 15.4 Inch
Width (IN): 10.8 Inch
Height (IN): 4 Inch
Remote On/Off Capable: Yes
With USB Port: No
With Volt/Watt Meter: No
With Short Circuit: No
With Reverse Battery Protection: No
With Thermal Protection: No
With Battery Cables: No
With Built-In Charger: Yes
With Fuse: No

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
• Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization: Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
